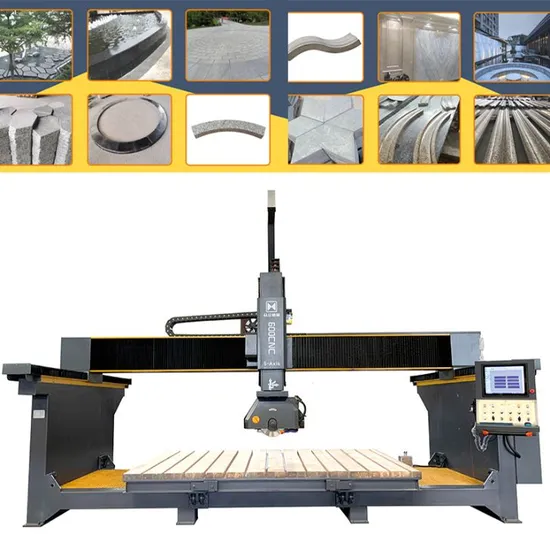

5 Axis CNC Stone Cutting Machine Bridge Saw for UAE / Russia

Product Description

Product Parameters

Model	ZLBS-600CNC/5A	ZLBS-600CNC/5+1A	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum Processing	L3500*W2000*H500	L3500*W2000*H500	mm
X.Y. Z-axis Transmission	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis	Head rotate 0°-360°, with Robot Reducer	Head rotate 0°-360°, with Robot Reducer
A-axis	Head tilt 0°-90° with Robot Reducer	Head tilt 0°-90° with Robot Reducer
Camera brand	Hikvison	Hikvison
Blade diameter	350-600mm	350-600mm	mm
Main motor	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy
Driving motor	1.5kw Servo motor YUHAI Or ESA	1.5kw Servo motor YUHAI Or ESA
Main motor RPM	6000	6000	RPM
Main Spindle type	Can be put a drill	Can be put a drill
Electric Spindle for Milling Work (Optional)	Without	* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw
Total power	30kw	35kw	kw
worktable flip	85°	85°
Water consumption	2	2	m³/h
Total weight	6	6	t

Product Description
We supply 5 Axis CNC Stone Cutting Machine, type ZLBS-600CNC/5A 5-axis smart cutting machine for processing quartz, marble, and granite. It's high-efficiency, high-precision, easy, and simple to operate. Take a photo, put the drawing on the stone in the photo, and then start the machine, which will process itself. The main part of the type ZLBS-600CNC/5A can be put into an open-top high-cube container.
We provide OEM/ODM service.
Option: own system, or ESA hardware with Pegasus software from Italy.

1: The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.

2: Option: ESA System from Italy or own system. The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
3: With an industrial computer and a 17" color touch-screen.
4: Use a camera to locate the position of the plate and display it in the cutting procedure.
5: A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
6: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber
Application Pictures


Packaging & Shipping

Company Profile

Certifications

---
