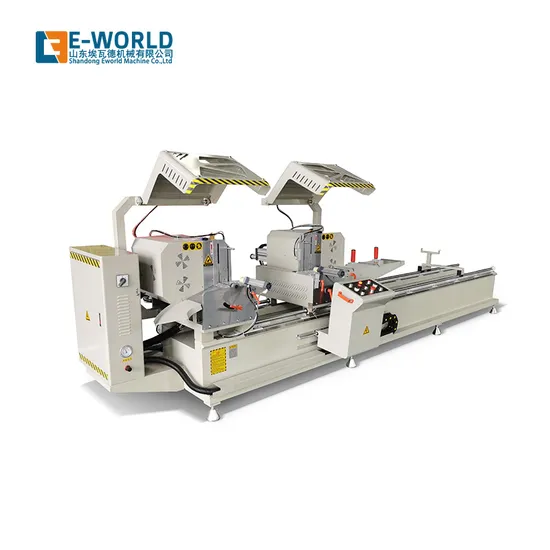

Aluminum Cutting Machine Double Mitre Saw Machine 500-4200

Product Description

aluminum cutting machine double mitre saw Product Description

Introduction Miter Saws work equipment used for cutting. Miter saws are very important for various types of carpentry work. They are used to create the perfect piece to form the elbow and the side frame. Basic miter saw that has a limited capacity cuts. Miter saws that have different types to provide the most versatile cutting options. But, from various types of miter saw, double miter saw is the most applications. Why should you choose miter double saw? double miter saw technology uses two saw blades that provide two complementary bevel miter cuts without resetting the head. This feature will obviously vary depending on manufacturer but usually double miter saws provide such benefits as follows: 1.Enable the production of continuous production and repetitive high volume 2.Provide minute variations in the cutting 3.May calibrated scales and fences 4.Hold the tweezers, 5.Dust filters, connection port or an internal system to collect dust This tool is an integral component of how double miter saw equipment will function, whether built by a machine, you can achieve, as bolster precision, smooth cutting, reducing waste of materials, the ability to cut wood, plastic, and various metals. In addition to providing manufacturers May: 1.Improved features include semi-automatic 2.Locking Security 3.Front service access for maintenance and easy changeovers This Advantage of double miter saw products. You can compare that with another type miter saws. Do not hesitate, to purchase this product, because it will help facilitate your work.
Control : The user-friendly control panel installed on the various models ,runs on bearing and allows corrected positioning of the moving cutting heads according to cutting specifications.The work cycle is optimized through creation of the cutting lists thus reducing scrap as well as workpiece loading/unloading times
Tilting of the moving cutting heads Tilting of the moving cutting heads:rotation of the heads about the horizontal axis is powered by pneumatic cylinders. External angels from 22.30' ,45, 90 can be obtained from machines fitted with 500 mm diameter blades.	The intermediate support proves highly useful when cutting light profiles with considerable lengths. In such case the support seeks to create the ideal condition to support the profiles. This accessory is available for all lengths
Technical parameter:
MODEL	LJXZ-500*4200
Input voltage	230/460V /3/60Hz
Input power	4.4Kw/6.5HP
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	200L/min
Motor rotation speed	3400r/min
Cutting length	400~4200mm/14-200
Cutting length tolerance	+ 0.005
Cutting angles	90, 45, 67.5 degrees
Cutting angle tolerance	+Â 1/10 of a degree
Cutting width	10~130mm
Cutting height	10~300mm
Saw feeding speed	0~3m/min
Saw blade standard	500x4.4x30xZ120
Overall dimensions	5.5x1.7x1.6M
Our products details:

FAQ 1.Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free
3.Question:What's the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5.Question:if our price is higher than another company or factories ?
Answer:
please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment ?
Answer:
Any payment method you want,such as L/C,T/T,D/P,West-union and so on

---
