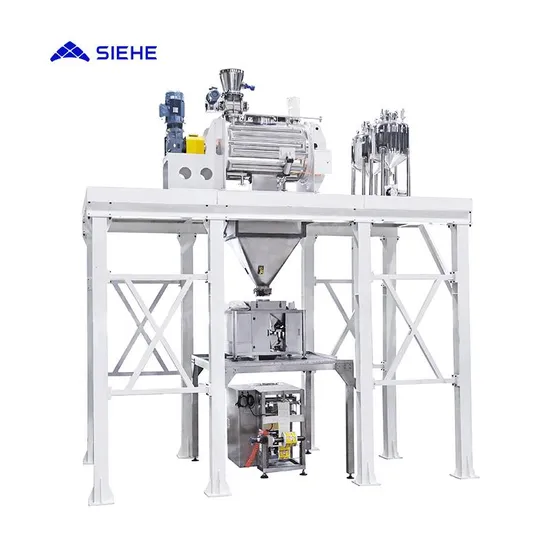

Powder Production Line Mixing Machine Food Additives Production Line

Product Description

Products Description SIEHE Industry pay attention to the R&D of safety and healthy food additives, especially provides complete sets of equipment for food and food additive industry and project contracting services. Our products comply with GMP requirements. The mixing equipment is the center of food and food additive production complete sets and it will choose different mixer and its additional features according to different technical requirements; The pre-mixing period equipment including: raw materials processing system (unpacking, feeding, crushing, screening, drying, etc.), raw material conveying system, raw material storage system, batching system and if necessary in the middle storage system, etc.; After mixing period of equipment including: semi-finished products processing system (screening, cooling, drying, etc.), caching system finished product, finished product conveyor system, the storage system for the final product, finished product processing before packaging system (screening, metal detection filter, etc.), finished product packing system, finished product stacking system, etc.; It also including the steel structure platform, dust removal system if the system need; It will provide different degree of automation of electric control system According to the customer requirement .
This unit including:
* Raw materials bags unpacking and storage;
* Batching & conveying;
* Mixing (liquid spraying in option); * Sieving and screening;
* Finished product filling system
* Finished product packing into bags;
* Operation platform system
* Electrical control system

This system can be used for the following industries	Spice/flavor/seasoning
	Baking powder
	Starch powder
	Fine chemicals powder
	Putty powder/dry mortar/pigment/metallic powder,etc.

System composition	Function	Optional Devices
Raw material storage system	Unpacking and feeding	Small bag feeding station, ton bag feeding station, Unpacking and feeding station for both small bag and ton bag, automatic small bag feeding station, etc
	Pulverizer	Universal pulverizer, Micro pulverizer, Air-jet pulverizer etc
	Sieving and filtration	Vibration Sieve, Linear Sieve, Airflow Sieve etc.
	Dying	Spray drying machine, Airflow drying machine, fluidized bed dryer, belt drying machine, etc
Batching system	Feeding	Powder parts: screw feeding, vibration feeding, belt feeding, rotary valve feeding
		Liquid feeding uses pump or pressurized conveying (Can spray the liquid to improve the mixing effect)
	Weighing	Powder parts: weighing bin, generally adopt desiccant method batching, or weight loss method
		Liquid measurement, generally uses flowmeter or weighing measurement
Conveying system	Conveying	Meet the requirements of transmission between each equipment in the production line
		Vacuum feeding machine, belt conveyor, bucket elevator, screw conveyor and pneumatic conveying system, pipe chain conveyor, etc
Storage system	Storage	Apply to raw materials and finished products, intermediate storage; There are: raw materials silo, finished product hopper, temporary storage hopper before mixing, finished products hopper after mixing, etc
Mixing system	Mixing	Double helix cone mixer, horizontal ribbon mixer, horizontal plough mixer, horizontal non-gravity mixing machine, V/double cone mixer, three-dimensional mixing machine etc.
Packing System	Packing	Top-open bag packaging machine, valve bag packing machine, ton bag packaging machine, vertical screw packing machine, automatic belt type small bag packaging machine, etc
Electric control system	Production monitoring	Control circuit structures, relay, PLC, PC - -based, etc
		HMI: push button type, digital type etc
		CMCC control center, IMCC control center, industrial wireless technology (still developing) etc.
Dust Collecting System	Dust removal	Cartridge dust collector, filter bag dust collector, relieve or clean the dust problem
Steel structure	Operation platform	Provide steel structure equipment installation, equipment operation and maintenance of the platform.
Material	Sanitary, GMP	SUS304,SUS316L,SUS321, normally use stainless steel mirror polished, meet the GMP requirement

Auxiliary Machines
Powder raw material feeding and storage machine Small bag feeding station Ton bag feeding station Full auto feeding station
Powder raw materials convey machines Screw feeding machine Vacuum feeder (use vacuum) Bucket elevator
Mixing machines available Horizontal ribbon mixer Horizontal plough mixer Horizontal non gravity mixer

Finished product packing machines
Small bag full auto packing Valve bag semi auto packing machine Top open bag semi auto packing machine Projects Display
Industrial Applications
Related Products
Company Profile SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining Center

Customer Photos
FAQ 1,Payment terms?
A1 L/C, T/T, D/P,cash;
2,Trade terms?
A2 In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP CIF and DDU;
3,Validity of quotation?
A3 Within 30 days;
4,Modes of shipment?
A4 By sea, by railway, by air and by express;
5,Warranty?
A5 One year and lifelong service provided at cost;
6,Installation & Commissioning & Training?
A6 For single set of machine, usu. tel or mail guidance for installation;For production line, paid overseas engineering service provided to customers'factory for installation and debugging, as well as training the worker to use the production line.

---
