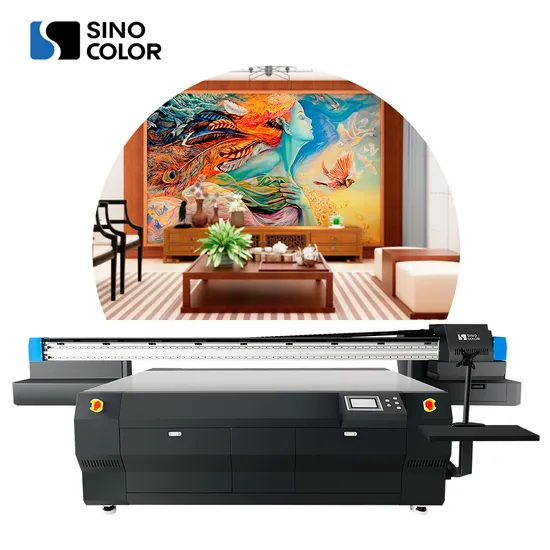

Manufacturer Supplied 2513 Large Format i3200 Ricoh GEN5/GEN6 Heads Varnish Available Acrylic PVC MDF Glass Board LED UV Flatbed Printer With AI Visual Position
With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.
| Model No. | FB-2513S (Pro) | FB-2513D (Pro) | FB-2513R | FB-2513Rs |
| Printhead | Official i3200-U Printheads | Official i1600-U Printheads | Ricoh Gen5 | Ricoh Gen6 |
| Number of Printheads | 2/ 3/ 4/ 6/ 8 pcs optional | 2/3/4/5/6/8 pcs optional |
| Resolution | Max 2400 dpi | Max 1440 dpi |
| Media | Thickness | 12 cm MAX |
| Size | 2500 x 1300 (mm) (200x300cm, 200x320cm, 160x120cm available) |
| Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc. |
| Speed | Draft | 50 sqm/h ( CMYK, 4 heads ) | 45 sqm/h ( CMYK, 4 heads ) | 14 sqm/h(with 3 Print heads, Color+ White) | 17 sqm/h(with 3 Print heads, Color+ White) |
| Production | 32 sqm/h ( CMYK, 4 heads ) | 28 sqm/h ( CMYK, 4 heads ) | 10 sqm/h(with 3 Print heads, Color+ White) | 12 sqm/h(with 3 Print heads, Color+ White) |
| High Quality | 24 sqm/h ( CMYK, 4 heads ) | 22 sqm/h ( CMYK, 4 heads ) | 8 sqm/h(with 3 Print heads, Color+ White) | 10 sqm/h(with 3 Print heads, Color+ White) |
| Ink | Type | UV Ink |
| Color | CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid |
| Capacity | 500 ML |
| Dry System | UV_LED light system |
| Negative Pressure System | Standard | Optional | Standard |
| Rip Software | MainTop (Standard) / FlexiPrint (Optional) |
| PC Operation System | Windows 7/XP/10 |
| Operation environment | Temperature: 20-28ºC, Humidity: 40%-60% |
| Power Supply | AC 110/ 220V, 50/ 60Hz, 4800W |
| Image Format | TIFF, JPEG, EPS, PDF… |
| Size | Machine | L4160 × W2130 × H1520 mm |
| Packing | L4300 × W2280 × H1780 mm |
| Weight | Machine | 1300 KG |
| Packing | 1500 KG |
Printer will be packed 1 set in 1 poly-wood box. Standard packing fit for international shipping. Safe.
Packing Size: L4300mm W2280mm H1790mm Gross weight: 1500KG Delivery lead time: 7 working days after receipt of down payment. SinoColor Provide DDP (Door to door, Tax included) service to most countries. That means just wait at home after paid. No need to worry about customs clearance, and shipping. Please feel free to contact for more details.
