Standard Head Rock Stone Machines Hydraulic Cone Crusher with High Quality Spare Parts

Product Description

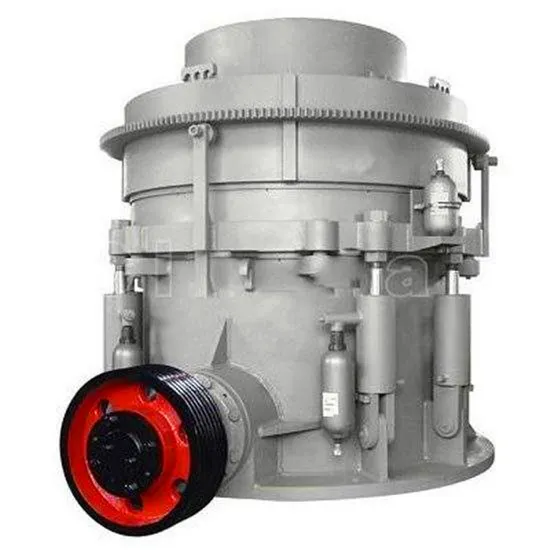

Standard Head Rock Stone Cone Crusher with High Quality

PYG series hydraulic cone crusher is the latest model of our company, which combines sing cylinder cone crusher and PYF cone crusher. It adopts a more advanced design concept. Better crushing frequency and uneven distance is used, so content of the grains is higher in crushing products.
Perfect combination of high performance crushing cavity and high crushing frequency improve its processing capacity greatly. And because of adopting laminated crushing principle, most of stone crushing machine are cubical shape.
PYG Multi-cylinder hydraulic cone crusher adopts entirely hydraulic operation. which is easy to use and realize automation. So that its reliability and using life are improved greatly. Simple structure is easy to operate and maintain, the adjustment of discharge opening is convenient and fast.. Especially, the lining plate is very easy to be replaced quickly, which reduces stoppage lime.
Optimum design and hydraulic protection make it fewer breakdowns. Generally, its fault-free operation ratio can surpass 85%.
main technical parameter:

Specification	Model	Cavity	Large end diameter of crushing cone (mm)	Adjusting range of discharge opening (mm)	Feed opening size of the open edge when recommending min. discharge opening (mm)	Max. feeding size (mm)	Processing capacity (m3/h)	Main motor power (kw)	Weight (kg)	Dimensions(mm)
Φ900	PYGB-0913	Standard fine type	950	14-38	130	110	130-250	160	1700	2007×2225×1950
	PYGB-0916	Standard medium type		18-38	155	132	145-250
	PYGB-0921	Standard coarse type		22-38	210	178	155-250
	PYGD-0907	Short head fine		8-25	70	60	80-220
	PYGD-0909	Short medium type		10-25	90	76	90-220
	PYGD-0912	Short coarse type		12-25	118	100	120-220
Φ1100	PYGB-1114	Standard fine type	1100	16-45	135	115	180-445	220	18500	2520×2620×2400
	PYGB-1121	Standard medium type		20-45	211	180	200-445
	PYGB-1124	Standard coarse type		26-45	235	200	230-445
	PYGD-1107	Short head fine		8-25	70	60	120-220
	PYGD-1110	Short medium type		12-25	96	82	120-220
	PYGD-1112	Short coarse type		14-25	124	105	120-220
Φ1400	PYGB-1415	Standard fine type	1400	16-50	152	130	225-620	315	29700	3106×3170×2945
	PYGB-1420	Standard medium type		22-50	200	170	270-620
	PYGB-1433	Standard coarse type		26-50	330	280	300-620
	PYGD-1408	Short head fine		8-25	80	68	115-370
	PYGD-1411	Short medium type		10-25	106	90	140-370
	PYGD-1414	Short coarse type		12-25	135	115	180-370
Φ1500	PYGB-1518	Standard fine type	1500	19-50	180	152	320-725	400	38800	3405×3480×3196
	PYGB-1522	Standard medium type		25-50	223	190	365-725
	PYGB-1534	Standard coarse type		32-50	335	285	405-725
	PYGD-1509	Short head fine		8-25	88	75	135-455
	PYGD-1512	Short medium type		10-25	124	105	175-455
	PYGD-1515	Short coarse type		13-25	152	130	225-455

About us
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
CITICHL is national major industry and heavy machinery manufacturing base in the middle of china, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.
Our Service
Pre-sale support:
As a good adviser and assistant of clients, we can enable them to get rich and generous returns on their investments:
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.

Services during the sale:
If you are an export client, we will support you the thoughtful documentary service from the date of signing the contract until the equipment installation and modulation finished.
We respect clients and always devote ourselves to improving the total value of clients:
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.

After-sales service support:
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Frequently Asked Questions
How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
How about price?
We are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity".
Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.

---
