0308f Serise Fast-Acting Surface Mount Ceramic Tube Fuse

Product Description

Description A compact 3mm x 8.4mm fuse provides a space saving alternative to conventional fuse solutions with high interrupting rating for primary and secondary circuit protection up to 250Vac/dc and 250 mA

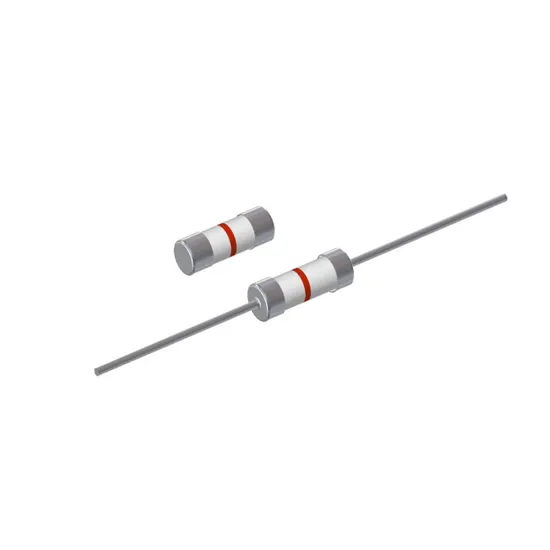

*Meets electrical perfomance specifications for intrinsically safe (EN60079-11) applications *Fast-acting, high interrupting rating of 4000 A at 250 Vac/dc *Ceramic tube, silver plated brass end cap construction *Optional axial leads (tinned copper axial leads construction) Electrical Characteristics For Series

Rating Current	Rating Current	300% of Ampere Rating	1000% of Ampere Rating
40mA~250mA	4Hour, Min	10Sec. Max	0.002Sec. Max

Electrical Characteristic Specifications by ltem Temperature Re-rating Curve * Normal ambient temperature: 23+/-3ºC * Operating temperature: -55 ~ 125ºC, with proper correction factor applied
Solder reflow profile Part Number System

0308F	0050	2	00
Fuse Type	Ampere Rating(100 x50mA=50mA)	250V	00: tape-and-reel 01: Axial Lead

Packaging

Packaging Option	Packaging Specification	Quantity
0308F	tape-and-reel	500 pcs
	Axial Lead	1500 pcs

---
