Single Layer HD/Ld Plastic Shrinkable Shopping Bag Blowing Film Extruder Machine

US$10,000.00-13,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XHL55
Type
High and Low Pressure Film Blowing Machine
Raw Material
HDPE
Maximum Folding Width of Film
800mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Machine Weight
2.5 T
Certification
CE
Suitable Material
LDPE/LLDPE/HDPE
Film Thickness
0.01-0.1 mm
Max Output
60 Kg/H
Screw L/D
30:1
Main Motor
18.5 Kw
Use Power
20 Kw/H
Die Size
120 mm
Air Ring
700mm
Air Blower
2.2 Kw
Roller Width
900 mm
Max Traction Speed
100 M/Min
Traction Motor
1.5 Kw
Winding Motor
6n.M
Max Winding Speed
100 M/Min
Winding Type
Surface Friction Type
Transport Package
Stretch Film Package or in Bulk
Specification
5300mm*1750mm*4900mm
Trademark
XIANGHAI
Origin
China
HS Code
847730900
Production Capacity
100 Set/Year

Packaging & Delivery

Package Size
500.00cm * 200.00cm * 200.00cm
Package Gross Weight
2100.000kg

Product Description

Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you! Product Description
Main Features:
1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment
3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head
Machine Description:
It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film; film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.
Main Technical Parameters
Model XHL50 XHL55 XHL60 XHL65
Suitable material LDPE; LLDPE; HDPE;
Max Film width 600mm 800mm 1000mm 1200mm
Film thickness 0.01-0.1mm
Max.output 50kg/h 60kg/h 70kg/h 90kg/h
Screw diameter Φ50 Φ55 Φ60 Φ65
Screw L/D 30:1 Option
Barrel Screw Material :38 crmoala
Main motor 15kw 18.5kw 22kw 30kw
Screw control 3 ZONE 3 ZONE 4 ZONE 4 ZONE
power use 17 kw/h 20kw/h 25kw/h 35kw/h
Die size Φ60/100 Φ70/120 Φ70/150 Φ80-180
Air ring 600mm 700mm 800mm 800mm
Air blower 1.5kw 2.2kw 3kw 3.7kw
Roller width 700mm 900mm 1100mm 1300mm
Max Traction speed Max 60m or 100m/min
Traction motor 1.5kw 1.5kw 1.5kw 2.2kw
Winding type Surface friction type
Winding motor 6 N.M 6 N.M 10 N.M 10 N.M
Winding speed Max 60m or 100m/min
Machine size 5*1.7*4.3m 5.3*1.75*4.9m 6*2*5.5m 6.2*2.5*6m
Machine weight 2T 2.5T 3T 4T

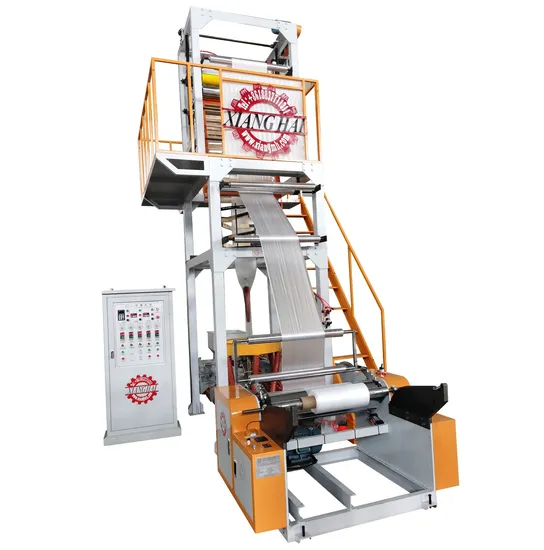

Overall picture
Detailed Photos
Rotary Die Head
Bubble Stabilized Frame
Up Traction system
Winding unit
Screw Main Engine
Blower
Electrical Control System
Workshop Pictures
Exhibition

Packaging & Shipping
Customer Reviews
FAQ
