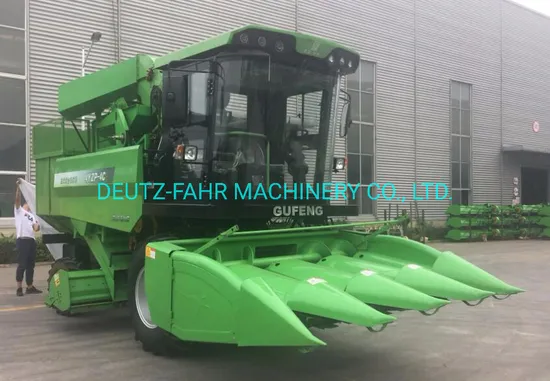

Agriculture Combine Harvester 4yzp-3L for Corn

Product Description

Model: 4YZP-3Y
Technology features: Low center of gravity, plate-type header without grain falling, suitable for hilly and mountain area. HST full hydraulic stepless speed changing gearbox, no need clutch, safe and comfortable operation. Dual arc-shaped bent glass cabin, electronic control, comfortable and efficient working. After cutting, then returning to the field, effective cutting. 4WD, high gradeability. Tech data:

NO.	ITEM		UNIT	PARAMETERS
1	Model		/	4YZP-3Y
2	Diesel engine	Model	/	SDQZ3	4D2-110U32
		Rated power	kW/hp	81/110	83/113
3	Dimension (L×W×H)		mm	5600×2040×3010
4	Working width		mm	1860
5	Elevator	Position/ width	/mm	Right position/ 375
		Maximum passing height	mm	2580
6	Minimum ground clearance		mm	260
7	Efficiency in working hour		hm²/h	0.23~0.40
8	Picking system / Length		/mm	Snapping plate+ Six - sided stalk pulling roller/ 703
	Lowest picking height		/mm	350
9	stripping machine	Stripping roller type	/	Spiral rubber roller
		Stripping roller size/ Quantity	mm/piece	Ф73×668/12
10	Grain tank	Volume	L	1800
		Unloading height	mm	1860
11	Straw processing	Header front cutting	Type	Hob type
		Returning machine	/	Sling blade type
		Returning machine width/ position	mm	1700/ Backside
		Leaf cutting type	/	/
12	Cabin model		/	Dual arc-shaped bent glass cabin
13	Gearshift method/ Driving model		/	HST+ Mechanical gearbox /4WD
14	Wheel base		mm	2138
15	Wheel track	Guiding wheel	mm	1620
		Driving wheel		1750
16	Tyre size	Guiding wheel	/	6.00-16
		Driving wheel	/	9.50-16

Other terms:
1. Delivery: 30 days for normal orders
2. Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3. Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
ABOUT DEUTZ-FAHR MACHINERY CO.,LTD
DEUTZ-FAHR MACHINERY COMPANY LTD. is a subsidiary company of Italian SAME DEUTZ-FAHR GROUP. We are available to provide customers with a full range of products, including tractors, harvesters. Covered area 45,000 square meters with 700 employees. We adopt Italy SDF group quality control management system and advanced production system. So we can supply high reliability and good performance tractors and harvesters to the farmers from all over the world.
There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
After-sales service polices: DABHAND corn harvester is offered 12 months of warranty period of the tractor, which shall start from the 3 month as the shipment date. DABHAND corn harvester will offer free service parts in warranty period, and there is no charge for related work hours and indirect expenses. Service training There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.

---
