US$39,000.00-44,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Machine Capacity
15*15-450*450mm
Max Process Thickness
190mm
X,Y-Axis Displacement
10m
Spindle Speed
0~800 Rpm/Min
Spindle Servo Motor
7.5kw
X,Y-Axis Servo Motor
2 Kw
Dividing Disk Diameter
250mm
Transport Package
Standard Exporting Package
Specification
L4800xW3800xH2800mm
Production Capacity
500 Sets/ Year
Product Description

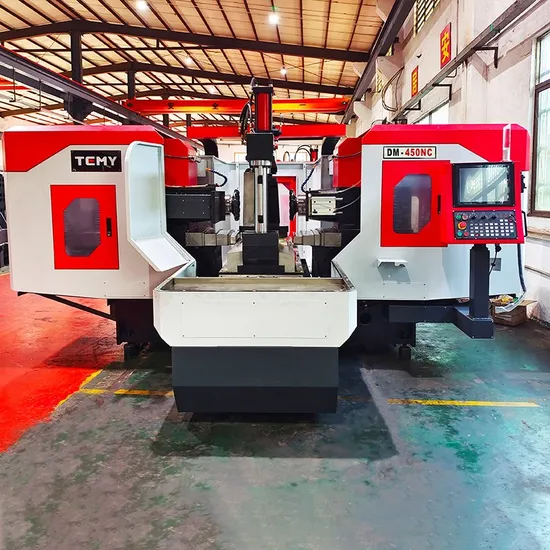

CNC Double Head Milling Machine
Model: DM-450NC
The double-head milling machine is a kind of machining equipment mainly used in the manufacturing industry. It is equipped with two milling heads, which can work simultaneously or independently according to the processing requirements. These milling heads are usually driven by high-power motors to provide sufficient torque and rotational speed for milling operations.
The double-head milling machine has high processing efficiency and precision. It can complete the milling of complex workpieces in one operation, reducing the processing time and improving the production efficiency. It is widely used in the processing of various materials such as metal, wood and plastic, and is suitable for manufacturing parts with high precision requirements, such as mechanical parts, mold manufacturing and so on.
| Model | UNIT | DM-450NC |
| Maching capacity | Processing scope | mm | 15x15-450x450 |
| Max.processing thickness | mm | 190 |
| Workbench loading | kg | 600 |
| Maching accuracy | Dimensionalaccuracy | mm | 0.01-0.02 |
| Verticality | mm | 0.02 |
| Straight angle | mm | 0.008 |
| Feeding speed | Z-axis travel | mm | 810 |
| X,Y-axis travel | mm | 250 |
| Feeding speed | Z-axis rapid displacement | m | 10 |
| X,Y-axis rapid displacement | m | 10 |
| Spindle | Spindle(taper) | / | BT50 |
| Spindle speed | rpm/min | 0-800 |
| Tooldisc diameter | mm | 200 |
| Motor | Spindle servo motor | kw | 7.5 |
| Z-axis servo motor | kw | 2 |
| X,Y-axis servo motor | kw | 2 |
| Fourth axis servo motor | kw | 1 |
| Verticalclamp servo motor(oil pressure) | kw | 2 |
| Workbench | Dividing disk diameter | mm | 250 |
| Disk surface dividing | | 5°-(Dividing) |
| Others | Mechanical weight | kg | 5000 |
>>
