Easy Operation Hand Pallet Stacker Hydraulic Manual Hand Lift Forklift Stacker with Removeble Platform Adjustable Fork

Product Description

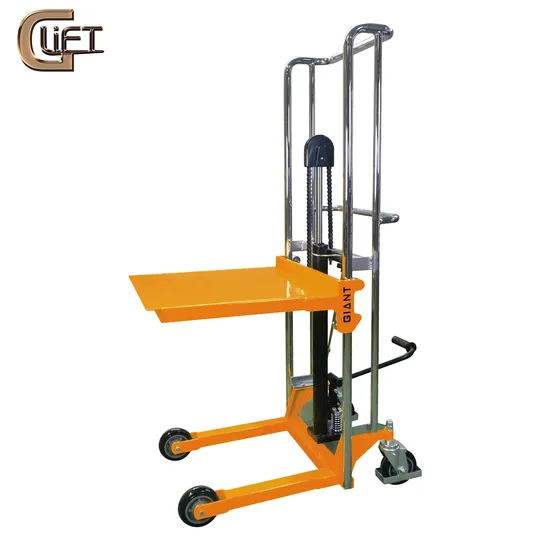

Giant Manual Hydraulic Pallet Stacker With 400KG Lifting Capacity(PJ)
Product Description
Giant Manual Stacker requires manually push & lift, stacker provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and cost-effective.
Product Feature:
Simple and easy operation: Lifting movement via collapsible foot pedal. Sensitive lowering through relief valve. Drive by manpower. Multiple cargo lifting method to fit in the need for lifting different type of product Double Chain lifting, better stability High quality steel mast and strong steel construction ensures rigidity and durability Highly efficient pumps make the control easier to operate With safety wheel guard and brake system to ensure safety during operation Overload protection via pressure valve. Long service lift: Robust construction. Hard chromium plated frame. Hardened chromium plated ram Effortless movement: Ball bearing rollers or Polyurethane rollers. Default No-marking castor Conforms to EN1757
Product Parameters

PJ
Model(Plarform)			PS4085	PS4120	PS4150
Model(Fixed Fork)			PF4085	PF4120	PF4150
Model(Adjustable Fork)			PJ4085	PJ4120	PJ4150
Capacity		kg	400	400	400
Max.Fork/Platform Height		mm	850	1200	1500
Min.Fork Height(PJ/PF)		mm	85	85	85
Min.Platform Height(PS)		mm	200	200	200
Fork/Platform Height		mm	650	650	650
Fixed/Platform Fork Width(PF/PS)		mm	550	550	550
Adjustable Fork Width(PJ)		mm	235-500	235-500	235-500
Pump Strokes to Max.Height(PS)		mm	30	45	58
Pump Strokes to Max.Height(PF/PJ)		mm	35	50	63
Overall Height	PF/PJ	mm	1060	1410	1710
	PS	mm	970	1310	1610
Overall Width		mm	590	590	590
Overall Length	PF/PJ	mm	1040	1040	1040
	PS	mm	1040	1040	1040
Net Weight	PS	kg	75	78	83
	PF	kg	70	76	82
	PJ	kg	75	81	85
Option Platform(PJ/PF)		mm	660x580	660x580	660x580

Similar Products
QUALITY CONTROL PROCESS
FAQ
Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8: Unique products, with customized service. Timely production and delivery, time is money. Market protection service, long term business strategy.

---
