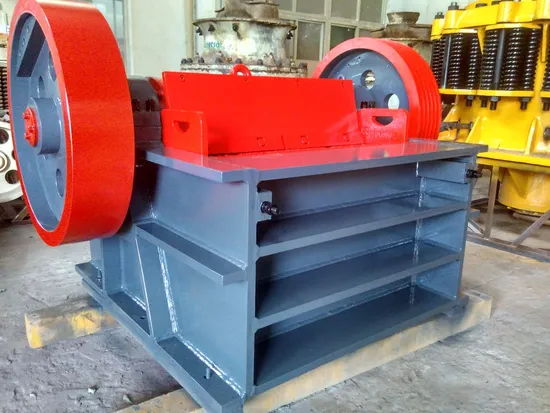

Secondary Crushing Machine Pex-250X1200 (PEX1047) Fine Rock Stone Jaw Crusher

Product Description

Specifications of Secondary Crushing Machine PEX-250X1200 (PEX1047) Fine Rock Stone Jaw Crusher

Model	PEX-250X1200, PE1047
Feed opening size	250x1200, 10"x47"
Max. feed size	210
Capacity	20-60tph
Rotation speed	330rpm
Motor power	37kw
Discharge opening range	25-60mm
Weight	7.7t

P.S This jaw crusher also is called PEX1047 jaw crusher, 10"x47" jaw crusher
PE Jaw Crusher Introduction
Application:
PE jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. It is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 320Mpa, that is, suitable for primary crush. Jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
Features: • Simple structure, easy maintenance;
• Stable performance, high capacity;
• Even final particles and high crushing ratio;
• Adopt advanced manufacturing technique and high-end materials.
Technical Parameters of PE/ PEX Seires Jaw Crusher
Deliver to Overseas Clients
Factory View

---
