Construction Machinery Weighing Dosing Machine for Mixing Plant Concrete Batching Machine

Product Description

Construction Machinery Weighing Dosing Machine For Mixing Plant Concrete Batching Machine Product Description

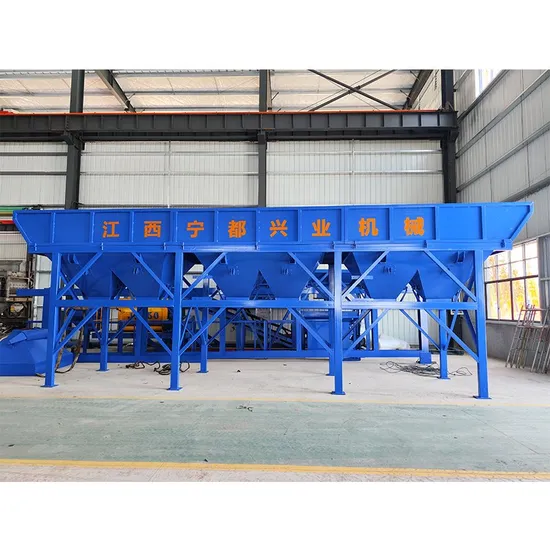

PLD1600 series concrete batching machine uses electronic weighing, weighing accurate, high batching accuracy, high speed, strong control features; is the ready-mix concrete with the use of automatic batching equipment. 1.weighing system: The use of direct weighing sensor metering mode, accurate and reliable metering;2.Storage Bin: Generous Storage Bin, feeding width 3100mm, meet 50 loader feeding; 3.Conveyor Belt: Belt Conveyor adopts no joint ring belt, guarantee the service life;
4.Control System, advanced batching control system, equipped with Special Operation Remote control handle, use more convenient!5.calibration scale: Before leaving the factory are in the designated calibration scale area to electronic scale with weight to verify the accuracy of the measurement system!
6.the Structure Form: Many kinds of structure form, satisfies the export packing and the road freight transportation request!
Product Parameters

Item Model	Weighing hopper volume (m3)	Storage hopper volume (m3)	Maximum weighing value (kg)	Total power(kw)	Total weight (kg)	Dimension / mm (L*W*H)
PL800 (2 hoppers)	0.8	3	1500	6.6	2350	5600*1560*2760
PL800 (3 hoppers)	0.8	3	1500	4	3600	8400*1560*2810
PL1200 (3 hoppers)	1.2	4	2000	4	4200	9270*2060*2900
PL1200 (4 hoppers)	1.2	4	2000	5.5	5700	11200*2000*2800
PL1600 (3 hoppers)	1.6	6	3000	4	5500	9700*2115*5360
PL1600 (4 hoppers)	1.6	6	3000	5.5	6000	12900*2115*3360
PL2400 (4 hoppers)	2.4	8	4000	7.5	8100	12900*2115*3360
PL3200 (4 hoppers)	3.2	16	5000	11	10500	14000*2325*3800
PL4800 (4 hoppers)	4.8	20	6000	11	11000	14000*2325*3800

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi.
The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.

Packaging & Shipping
Certifications


Our Advantages
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available,
including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.

Question 2: What is the actual loading capacity of each bin of the PLD1200 concrete batching machine? How much can the scale bucket hold?
Answer: Each bin holds around 3 cubic meters. The scale bucket can hold 3200 kg (capacity is 1600L).
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team

Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.

Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.

Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.

Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.

---
