Product Description
Product Description

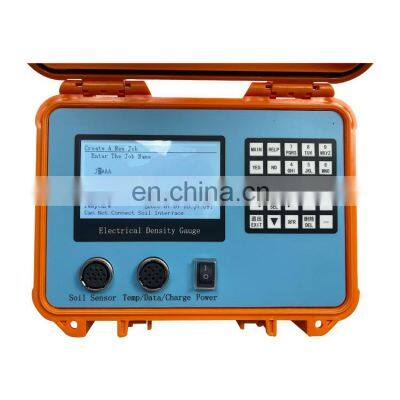

Non-Nuclear Soil Density GaugeProduct DescriptionNon-Nuclear Soil Density Gauge is used for determination of density of solid specimens with non nuclear method.The GTJ-4114 Non-nuclear soil density gauge (EDG) accurately measures soil density, moisture content and compaction in roads and foundations. The measurement accuracy depends mainly on the correct use of the operator, so a detailed reading of this operating manual with be available. Help you to use the product better.Equipment Operation 1. Soil model is the combination of soil electronic data and soil physical data input by users, and it is the basis of testing parameters in a similar soil characteristic area. 2. When making a soil model, EDG is needed to collect electronic signals at different test points (the test point of this soilmodel is called soil test). Each test point needs to collect an electronic signal. At the same time, sand cone test is needed to obtain the physical characteristics of the soil, such as wet density, dry density and moisture content. The maximum dry density of the soil is measured in the laboratory, and then these data are input into the instrument so that the electronic data can be correlated with the physical data. 3. At least three test points (soil test) are required for soil moulding. The more test points, the more representative the soil model will be. Moreover, the larger the density and water content range covered by the test points, the more accurate the soil model is. 4. After the soil model is made, EDG can be used for field test. The test area is the area where the experimenter intends to test and the tested soil has the same physical characteristics. 5. A soil model is usually made for each different test area. Different projects need different soil moulds. Once the soil model representing this area is successfully made, the soil characteristics of any test point can be quickly and accurately measured by EDG through field test. 6. The actual test is to calculate the physical properties of soil by comparing the electronic data collected from the test points with the soil model.ParametersEquipment nameSoil nuclear density meterEDG host and connectorWaterproof connection,but it is best not to use it in rainy daysWet density rangeAccording to the typical compacted soildry density accuracy:within 3% of the standard physical testMoisture content rangeAccording to the accuracy of typical compacted soil moisture content:within 3% of the standard physical testMaximum RS-232 cable length100cmInternal power supply12V nickel-hydrogen,2000mAh capacityBattery lifeAbout 24 hoursOperating temperature range0 to 50℃Humidity range5% to 90%EDG controller weight8kgEDG controller size300*260*140mmEDG accessory weight vEDG accessory weight vApplicationContact USCangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
>>
