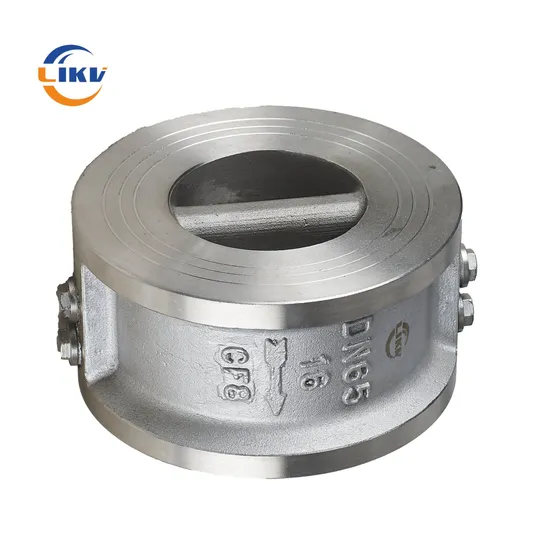

Good Quality China Manufacturer Wafer Type Double Plate Flap Check Valve

US$46.00
1-29 Pieces
US$43.00
30-49 Pieces
US$40.00
50-99 Pieces
US$37.00
100+ Pieces

Basic Info.

Model NO.
LK-H10
Material
Cast Iron
Connection Form
Flange
Structure
Swing
Pressure
Low Pressure
Function
Ddcv Double Lobe
Sealing Form
Rubber Seal
Flow Direction
Unidirection
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage
Standard or Nonstandard
Standard
Product Name
Product Name
Blade
Rubber
Working Temperature
≤80ºC
Working Pressure
Pn16
Weight
Depend on Differenct Size
Color
Blue
Body Material
Ductile Iron
Stem
Stainless Steel
Transport Package
Wooden Case Packaging
Specification
4 in
Trademark
like
Origin
China
HS Code
8481804090
Production Capacity
1000000

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
600.000kg

Product Description

Good quality and high sales China manufacturer wafer type double plate flap check valve Product Description
Meterial of main parts
Gomponents name Material
Valve body Cast iron .ductile iron .cast steel
Valve cover Rubber Combinationcomponents
Spring Stainless steel

Technical data
PN (MPa) Nominal Pressure 1.0 1.6 2.5
(MPa) Intensity pressure test 1.5 2.4 3.75
(MPs) Seal pressure 1.1 1.76 2.75
°C Suitable temperature ≤80
Suitable Mediums Clearwater,Sewage,Seawater
Slow shuts the time ≤60 seconds
Detailed Photos
Product details
Certifications
Qualification certificate
Process and Equipment
Production process
Production equipment
Application
If you want to learn more,please contact with us

LIKE VALVE (TIANJIN) CO., LTD
Sales Director
KATRINA JIA
http://likevalve.en.made-in-china.com
Address: H12 Tengfei Base of Xiaozhan Industrial Area, Jinnan District , Tianjin, China
We will always be here try our best to provide you our best service!
