Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
2.6mm
Product Name
Concrete Pump Machine
Keywords
Concrete Truck Pump
Model
Yg-30 Trailer Concrete Pump
Diesel Motor
4105 Model 55HP
Outlet Pressure(Max)
15/18MPa
Theoretical Throughput (Max)
25-30m3
Horizontal Conveying Distance
160-200m
Vertical Conveying Distance
100m
Diameter of Conveying Pipe
φ125(100)mm
Machine Szie
3800X1500X1600mm
Transport Package
Wooden Case
Specification
3800x1500x1600mm
Production Capacity
100set/Month
Packaging & Delivery
Package Size
3800.00cm * 1600.00cm * 1800.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description
Small Mortar Spraying Machine Concrete Mixer Construction Machinery Electric Diesel Engine Mobile portable Trailer Mounted Concrete Pump for sale
Concrete pump, also called secondary structural column pouring pump, is suitable for transporting fine stone concrete in super high-rise buildings and pouring structural columns in building floors.
Features of Concrete Pump Machine
1.The S-tube type distribution valve is used to meet the pumping needs of small aggregate concrete and mortar.
2. The main oil pump adopts a deformation plunger pump, which has high efficiency and strong pressure.
2. The hydraulic system adopts independent three-circuit control, highly reliable spectacle plate, and cutting
4. The cutting ring is made of carbide, which is wear-resistant and has a long service life.
5. The pumping mechanism adopts double-cylinder piston type, with advanced performance and good continuity.
Product Parameters
| Model | YG-30 Trailer Concrete Pump |
| Power | 4105 model 55HP |
| Outlet pressure(max) | 15/18mpa |
| Theoretical throughput (Max) | 25-30m³/h |
| Horizontal conveying distance | 160-200m |
| Vertical conveying distance | 100m |
| Diameter of conveying pipe | φ125(100)mm |
| Weight | around 2000kg |
| Dimensions: | 3800x1500x1600mm |

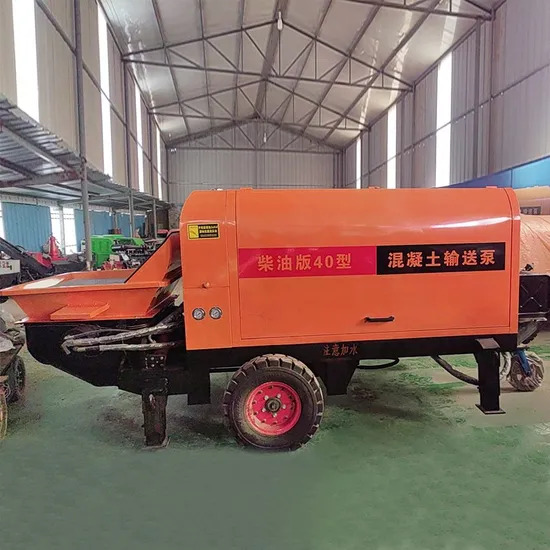

Detailed Photos
Related Product
| Type | YG-40-35D |
Generator set power
| 150kw |
| Power | 45kw |
| Aggregate size | 0.5-40mm |
| Conveying Capacity | 20- 30m³/h |
| Horizontal conveying distance | 100-150m
|
| Vertical conveying distance | 50-60m |
| Pipe diameter | 100-125mm |
| Material tank diameter | 125 |
| Maximum pressure | 20mpa |
| Cylinder diameter * stroke | 180 * 1000mm |
| Pipe | steel pipe * 20m; soft pipe *10m |
| Dimension | 6100*2100*2700mm |
| Weight | 5800kg |
Maximum aggregate diamete
| ≤12mm
|
Production capacity
| 3m³/h
|
Working pressure
| 3MPa
|
Applicable materials
| (water:ash:sand):0.7-1:1:3
|
Motor power
| 7.5kw
|
Transport distance
| Level:60m,vertical:40m
|
Hopper volume
| 80L
|
Displacement of air compressor
| 0.3m³/min
|
Packaging & Shipping
