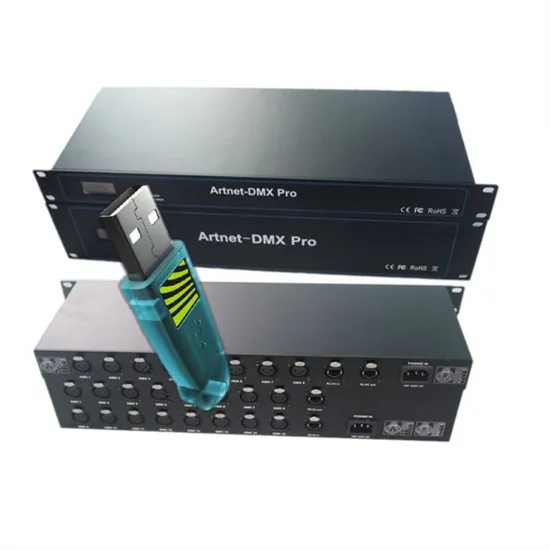

16 Port Artnet to DMX 512 Lighting 3/5 Pin XLR DMX Controller for LED Pixel Light

Product Description

Product Parameters

Item Type	International Standard 16ports Art Net Controller	International Standard 8ports Art Net Controller
Model	LCL-AN-16-D	LCL-AN-8-D
Working Voltage	AC110-220V	AC110-220V
Protocol	DMX512	DMX512
Output Port	3/5pin XLR Female	3/5pin XLR Female
Compatibility	Madrix software	Madrix software
Pixel	16*170pixels	8*170pixels
Outlook Size	483*200*88mm	483*200*44mm
Weight	2.37kg	1.55kg
Certification	CE, RoHS	CE, RoHS

Controller Features:
1. Art-net Supports standard DMX512/1990 USITT general protocol and extended DMX512 protocol;
2. Support Art-net protocol, based on Ethernet protocol to achieve lighting control;
3. Three based colors control independent brightness, making accurate adjustment of white balance more effective and simpler;
4. Precise gamma correction algorithm. It better conforms to the visual photographic characteristics of the human body, and the display color is more sufficient and rich, so as to perfectly reflect the animation or video effects of the designer;
5. Support 120-frame frequency at most, to guarantee demands for HD display and 3D display of the image;
6. Using Ethernet interface and UDP network protocol transmission stability, the maximum transmission distance is 100 m;
7. LCD display module, to timely display the controller parameters and state;
8. The dual network interface enables cascading between controllers; controller automatically detects;
9. 8/16 interfaces output,single interface is standard DMX512;
10. Thousand / hundred trillion adaptive or force trillion can be set to ensure that a large number of points of the project is more stable. More details photos:

Related Products

Application:
Company Profile
Shenzhen Ledcolourlight Technology Co., Ltd is a high-tech business of focusing on LED entertainment lighting and outdoor lighting which have intergrating the R&D,production,sale and service of the LED control system and lighting solution provider. Welcome to visit our company,workshop and showing room.Our products cover editing software and control system. Our DMX meteor tube, DMX strip, DMX 3D ball, DMX panel, DMX dot, DMX pixel are popular for the stage, nightclub, bar, events, and rental. Our DMX wall washer, DMX floodlight. DMX underground light, DMX Fountain light, DMX linear lights, and street light are widely applied to the theme park, hotel, business center city lighting, and so on.
Packaging & Shipping
FAQ
1. Q: Are you a factory or trading company ? A:we are a factory as a munufacturer. 2. Q: What your company produces mainly ? A: Ledcolourlight mainly specilized in DMX Lighting products, and also provide a full dmx lighting solution for projects. 3. Q: How can I get some samples ? Delivery time for samples? A: If samples in stock, can be sent out right away. If no samples in stock, take 3-7 business days for production. 4. Q: MOQ?
A: 2 pieces per one model at least. 5. Q: OEM and ODM available? A: Yes. 6. Q: Delivery time for big order? A: For small order, 3-7 business days. For big order, 12-20 business days. 7. Q: Payment Terms?
A: PayPal (Less than 500USD), T/T, Western Union, L/C 8. Q:Warranty? A. All products we sell are in good quality and have been tested before they are shipped out. We offer 2 years Warranty 9. Q:How About I had never bought any product from China? A: We will guide you step by step, any possible potential cost will be listed, and provide all info if needed.

---
