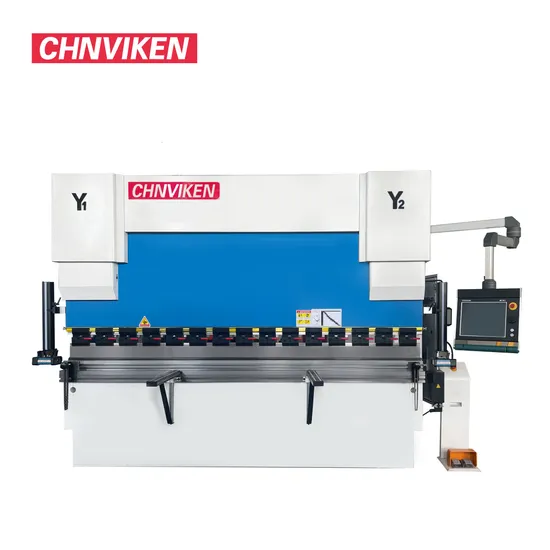

Advanced Hydraulic Electric Folding CNC Press Brake Machine

Product Description

Delem DA66T CNC Control system:
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.
The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.DA-66T features
> 3D visualisation in simulation and production
> 17″ high resolution colour TFT
> Full Windows application suite
> Delem Modusys compatibility (module scalability and adaptivity
> USB, peripheral interfacing
> User specific application support within the controllers multitasking environment
> Sensor bending & correction interface.

Bending Capability	80/3200	100/3200	125/4000	160/3200	200/4000	300/4000	400/6000
Nominal Force(KN)	800	1000	1250	1600	2000	3000	4000
Worktable Length(mm)	3200	3200	4000	3200	4000	4000	6000
Column Distance(mm)	2565	2610	3450	2610	3140	3140	4740
Throat Depth(mm)	250	320	320	320	320	400	400
Ram Stroke(mm)	120	120	120	180	250	250	300
Main Motor Power(KW)	5.5	7.5	7.5	11	15	15	30

No.	Component Name	Details
1	Controller	DA-66T
2	Main Motor	Siemens Main Motor
3	Hydraulic system	RexRoth, Germany
4	Oil pump	Sunny, America
5	Electrical components	S chneider, France
6	Servo motor and driver	Estun, China Nanjing
7	Ball screw linear guide rail	HIWIN, China Taiwan
8	Hydro-cylinder	VIKEN
9	Bear	NSK, China Shanghai
10	Punch and Die	42CrMo Material
