| Company name | YINGDE CONCH PROFILES CO.,LTD |

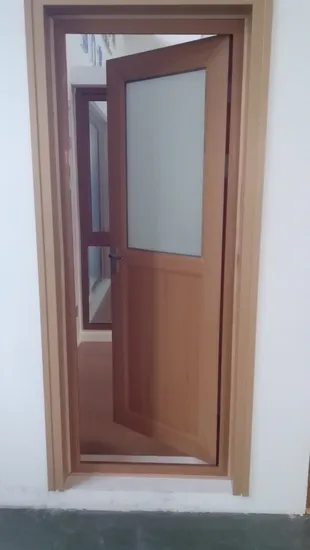

| Product Name | CONCH UPVC Bathroom Door |
| Material | 1.CONCH brand Profile |
| 2. Good hardware | |
| 3. Good quality glass | |
| 4. Strong reinforcement steel | |
| 5. Rubber strip | |
| 6. Hair strip | |
| 7. Air bubble polysheet, card paper, wooden box for packaging as requested | |
| Specification & Features | 1. Excellent heat preservation performance Plastic has heat conductivity factor, and has a heat insulation effect 1250 times better than aluminum material. |
| 2. Good sound insulation performance Its structure is designed very well, with tight joints. The test result indicates that its sound insulation is <20db and complies with DIDN4109. | |
| 3. Anti-aging Imported denaturalizing agent is applied, and the agent for preventing UV rays absorption is added in the raw materials. The product does not discolor, and become aging or brittle even when it is exposed to direct sunlight, rainstorm, drying or humidity between -30°C and 70°C. | |
| 4. Good combustion-retarding performance Plastic window is made of quality combustion-retarding material, and does not ignite itself or support combustion and can extinguish the fire by itself. So it is your ideal choice. | |
| 5. Resist impacts Special impact-resisting design is applied, and the section material can bear cold impact test of 1kg hammer dropping freely from one meter height at -10°C. | |
| 6. Good waterproof performance Its water absorption is <0.1%. The doors and windows are designed to have rainproof plates and water drain slots, and can completely isolate the rainwater outside of your room. Its waterproof performance complies with DIDN18055. | |
| 7. Good anti-theft Plastic door and windows are provided with high-quality metal articles. Inside of windows will be fitted with glass strips according to the design so that thieves have no solutions. | |
| 8. Easy maintenance Plastic sections are not corroded and do not discolor or get yellow. They are not affected by ash, cement or binding agents, so they almost need no maintenance. | |
| 9. Good air tightness All the joints and gaps of the plastic windows are fitted with ternary sealing strips, and unit length of gaps can vent below 4m³mmhm. In the house equipped with cold and heating facilities, the plastic window can be fully jtilized as air-conditioners, and can save energy. | |
| Product Design | 1. Designing based on customer's requirement; |
| 2. Designing based on our technical knowledge; | |
| 3. Improving based on customer's design with our profession; | |
| 4. Totally follow customer's original design. | |
| Color | White |
| Full color | |
| MC Co-extruded on white | |
| MC Co-extruded on full color | |
| Film coated on white | |
| Film coated on full color | |
| Processing | 1.Profile culculating and Cutting |
| 2.Drilling holes for hardware, drainage | |
| 3.Fixing reinforcement steel | |
| 4.Welding shape and cleaning | |
| 5. Applying rubber and hair strip | |
| 6. Installing hardware and glass | |
| 5. Packing | |
| Certification | ISO9001, AAMA, CE |
| Use | Both interior and exterior for all kinds of constructions, can be assembled into different window types to fit for different building style. |
| MOQ | 50 square meters |
| Production capacity | 80000tons/year |
| Lead time | About 20 days after receipt of 30% advanced payment |
| Price term | FOB Guangzhou / Shenzhen |
| Payment term | T/T 30% in advance, the balance before shipment |
| Warranty | 10 years on profile, 1 year for hardware. |
