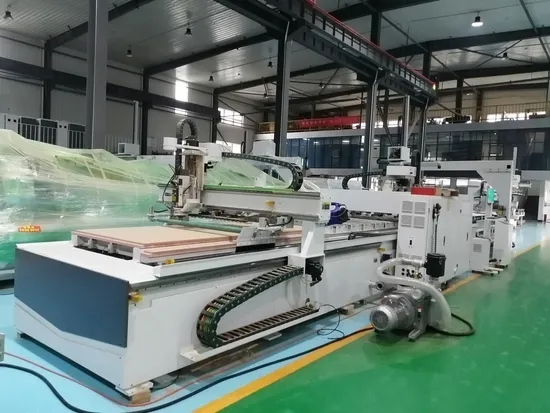

CNC Woodworking Drilling and Cutting Machine

Product Description

Parameters	DLM-ZQ49
Plate processing size	1220*2800mm
Running speed	65m/mim
transmission	X/Y: rack and pinion Z: ball screw
Table design	Partitioned vacuum adsorption table
Spindle power	Linear type / 9KW / automatic
Spindle speed	18000-24000r/min
Max. working speed	20m/min
Working voltage	AC380/3PH/50HZ

Feature
* This machine is an integrated processing equipment for drilling, grooving, and cutting of sheet metal.
* The machine consists of three main parts: automatic labeling area, drilling area, and cutting unloading area. Manual labor only needs to place the board on the labeling lifting platform, and the machine can automatically complete the labeling of the board, drilling and grooving on the front and back sides, and processing of cutting and cutting .
* The equipment is easy to operate, efficient, and precise, with a production capacity of 140-160 boards in 8 hours.
Features1)This machine is an integrated processing equipment for drilling, slotting and cutting the plate. One person operation, simple and efficient, can complete the processing of 120-140 pieces of plate a day.
2)The model added three new functions, one is the fast knife function, the punching speed is very fast, greatly improve the efficiency, one is the form sorting processing function, without the need for an import program, directly arranged in turn processing.One is the start function behind the bed, the plate on the surface behind the bed, then press the start button, start processing, no need to run back to the front operation box to press the start, save the time of running back and forth, improve the production efficiency.

---
