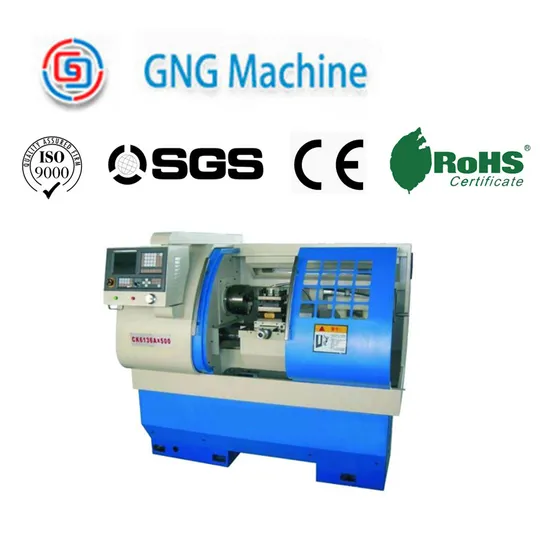

Professional High Precision CNC Lathe

Product Description

Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6136
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
The machine is a CNC lathe controlled by a microcomputer and driven by servo motors.

CK6136/6140 CNC LATHE
Technical spec.		CK6136	CK6136A	CK6140	CK6140A
FOBQingDao Price(USD)
Max.swing over bed	mm	Φ360		Φ400
Max.diameter over slide	mm	Φ180		Φ200
Max.turning length	mm	650/850
Spindle speed	rpm	300-2000	S:150-600	300-2000	S:150-600
			M:300-1250		M:300-1250
			H:500-2000		H:500-2000
Bed width	mm	340
Spindle bore		Φ60
Spindle taper		MT6
Spindle nose		A2-6
No.of tool stations		4
Size of tool shank	mm	20x20
Diameter/taper of tailstock quill		Φ60/MT4
Travel of tailstock quill	mm	140MM
Motor power	KW	5.5
Max.travel X axis	mm	240
Max.travel Z axis	mm	650/850
Min.input unit	mm	0.0001
Driving motor torque of X/Z axis	Nm	4/6
Over all dimensions (LxWxH)	mm	2180/2380x1400x1590
Package dimensions(LxWxH)	mm	2370/2570x1600x2100
Net/Gross weight	kg	1700/1900 1800/2000	1750/1950 1850/2050	1750/1950 1850/2050	1800/2000 1900/2100
Special accessories	1.Φ72/Φ85 spindle bore 5.hydraulic tailstock 2.air chuck 6.quick clamp 3.hydraulic chuck 7.steady rest 4.air tailstock 8.follow rest http://gngmachine.en.made-in-china.com

FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, Wherever you are from, we are looking forward to explore new market with you.

---
