Official 32m Elevating Aerial Work Platform Fire Truck Dg32c for Sale

Product Description

Product Description
Official 32m Elevating Aerial Work Platform Fire Truck Dg32c for Sale
Katharine Zhou

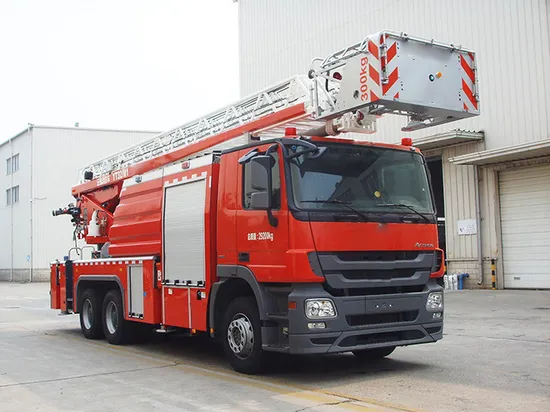

DG32C Elevating platform fire truck is a multi-purpose fire fighting vehicle, which is hydraulic driven, full-rotary, telescopic boom + folding arm type, equipped with a fire fighting and rescue ladder.
1. The truck has incorporated the functions of the elevating platform fire truck and high pressure spray fire truck, so it can not only perform rescue work but also extinguish the fire (the truck is integrated with a water monitor). 2. With advanced technologies applied and high quality guaranteed, the main performance parameters of this truck have reached (or exceeded) international level of the same products. 3. Adopted with electro-hydraulic proportional control system and is hydraulic driven, the overall vehicle works stably and reliably, convenient for operation. OUR SERVICE
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7 years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service. Detailed Photos
Product Parameters

Type	Item		Unit	Parameter
Dimension Parameter	Overall length		mm	11850
	Overall height		mm	3900
	Overall height		mm	2500
	Wheel space	1st shaft - 2nd shaft	mm	4500
		2nd shaft - 3rd shaft	mm	1350
	Wheel track	Front shaft	mm	2053
		Rear shaft	mm	1802
Power Parameter	Engine model			OM906LA.III/4
	Engine power/rev. speed		kw/r/min	205/2200
Mass Parameter	Full-laden weight		kg	23850
	Shaft load	Front shaft	kg	6000
		Double rear shaft	kg	17850
Driving Parameter	Max. Speed		km/h	≥85
	Min. Turning diameter		m	≤20.3
	Approaching angle		°	17
	Departure angle		°	10
	Braking distance (speed is 30Km/h)		m	≤10
	Min. ground clearance		mm	204
	Max. gradeability		%	≥25
