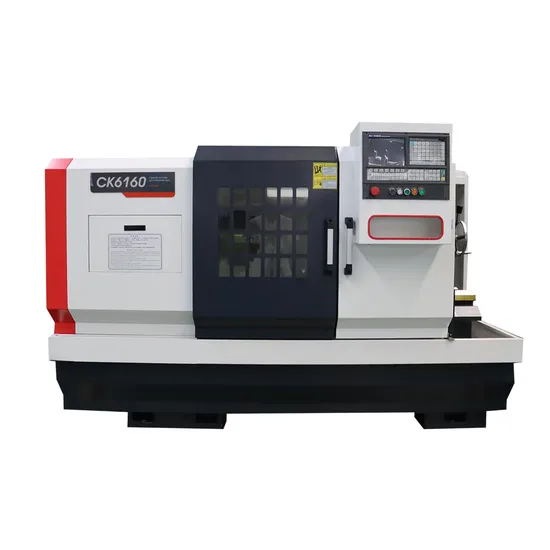

High Performance 0.01mm Precision Automatically Process Ck6160 Mini CNC Lathe Machine

Product Description

High Performance 0.01mm Precision Automatically Process Ck6160 Mini CNC Lathe Machine
Detailed Photos
Product Parameters

Specifications	Unit	CK6160
Max.swing dia.over bed	mm	600
Max.swing dia.over slide	mm	395
Maximum turning dameter (disc)	mm	600
Max.work piece length	mm	1000/1500/2000
Maximum turning length	mm	850/1350/1850
Spindle nose	mm	A2-8/A2-11
spindle bore	Ф/mm	82/130
Spindle taper	Ф/mm	Metric 90/Metric 140
Spindle speed	r/min	150-1800/150-800
Spindle type		Stepless speed regulation
Spindle motor power	KW	7.5/11
Chuck type		Manual chuck
Chuck size	mm	250/320/380
X axis rapid traverse	m/min	6
Z axis rapid traverse	m/min	8
X axis servo motor torque	N.m	5/7.5
Z axit serve motor torque	N.m	7.5/10/15
X axis travel	mm	325
Z axis travel	mm	1000/1500/2000
Guide way type		hard rail
Capacity of tool post		4
Tool shank size	mmxmm	25x25
Tail stock quill dia	Ф/mm	75
Tail stock quill travel	mm	150
Tail oock quill taper		MT5#
Total rated power	KW	11/12/13
Total rated current	A	23/26/29
Net weight	kg	2800/3200/3400
Mactine dimension(L*W*H)	mm	2650/3250/3750x1700x1820

Applications
Product Feature
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.

---
