0.75kw 1.5kw 2.2kw AC 220V Industrial High Speed Rolling Door Control System Motorized Rolling Shutter Motor

Product Description

Product Description
Feature:
1. Leading power-cut braking technology. Motor is isolated from controller's HV output circuit. Contact point is disconnected after stopping. No charged door body spontaneous combustion, fire and electric leakage hazards! Quiet, soft braking, more stable operation and safer braking;
2. There are only 2 connecting cables between motor reducer and electric box. Simple installation and wiring on site;
3. Absolute value encoder or mechanical limit switch can be selected
4. Controller adopts IPM intelligent module with compact structure and has stronger functionalities.
5. It has inching/manual/automatic, fully open/partially open, single button, adjustable light ineffective position, interlocking, double-door interlocking automatic door opening, air curtain machine control, door opening in place, door closing in place, fault output, RS485 Internet of Things remote control functionalities;
6. Unified installation dimensions 220V/0.75KW, 1.5KW and 2.2KW
7. Simple and friendly operation interface, convenient debugging and maintenance;
8. Real-time monitoring on signal and alarm, and one-key to restore factory preset value.

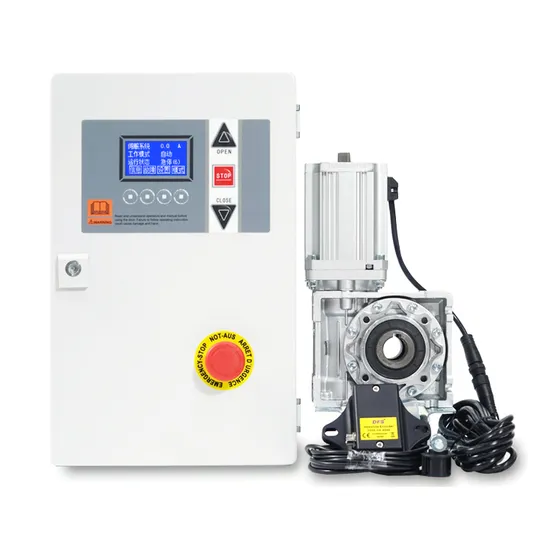

The DM400 series products include a set of servo control boxes, servo motors, and absolute encoders, which are used to support the control of PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, sliding doors and other industrial categories.Plug and play, stable performance, friendly interface for control parameters, powerful functions, easy to debug and maintain.
IPM intelligent power module design
The control box adopts the leading IPM intelligent power module design, the structure is clean and compact, and only two cables are connected between the control box and the motor, plug and play.Servo control box panel
Control Box Specfication

Model	DM400	DM401	DM402
Rated power	0.75kw	1.5kw	2.2kw
Shell size (Length x Heightx Depth)	250 x 400 x 130 mm
Power supply voltage	Single-phase AC220V~240V 50~60Hz
Control voltage	DC24V, Max. current 400 mA
Position control	Absolute value encoder or mechanical limit switch
Overload capacity	150% rated current for 1 minute
Operating ambient temperature	-10~50ºC
Place of use	Free from oil mist, dust, corrosive or flammable gas,etc.
Weight	6Kg

Motor specification

Motor model	DM-2430	DM-4030	DM-6030
Rated power	0.75KW	1.5KW	2.2KW
Rated current	3A	5A	6A
Lifting weight	50KG	100KG	150KG
Applicable door size	10M²	30M²	50M²
Rated voltage	AC220V
Insulation grade	F
Operating ambient temperature	-40~+50ºC
Protection grade	IP54

0.75KW Servo Motor Size Drawing
1.5KW Servo Motor Size Drawing
Absolute value encoder
For More Details Of Product Specifications,
Please Click here contact us for updated size drawing if you have other different parameter needed. Thanks
Company Profile
DMKE motor was founded in China, Guangzhou city,Panyu district, in 2009. After 12 years' creativity and development, we became one of the leading high-tech companies in China in dc motor industry. We specialize in high precision micro dc gear motors, brushless motors, brushless controllers, dc servo motors, dc servo controllers etc. And we produce brushless dc motor and controller with wide power range from 5 watt to 20 kilowatt; also dc servo motor power range from 50 watt to 10 kilowatt. They are widely used in automatic guided vehicle , robots, lifting equipment,cleaning machine, medical equipment, packing machinery, and many other industrial automatic equipments. With a plant area of 4000 square meters, we have built our own supply chain with high quality control standard and passed ISO9001 certificate of quality system.With more than 10 engineers for brushless dc motor and controllers' research and development, we own strong independent design and development capability. Custom-made motors and controllers are widely accepted by us. At the same time, we have engineers who can speak fluent English. That makes we can supply intime after-sales support and guidance smoothly for our customers.Our motors are exported worldwide, and over 80% motors are exported to Europe, the United States, Saudi Arabia, Australia, Korea etc. We are looking forward to establishing long-term business relationship together with you for mutual business success.
FAQ
Q1: What kind motors you can provide?A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.Q2: Is there a MOQ for your motors?A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference than bulk price based on different style.Q3: Could you send me a price list?A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's difficult for us to provide a price list.
If you can share your detailed specification and order qty, we'll see what offer we can provide.Q4: Are you motors reversible?A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.Q5: Is it possible for you to develop new motors if we provide the tooling cost?A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.Q6:How about your delivery time?A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty.
For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.
Pleasecontact us for final reference.Q7:What's your warranty terms?A6: One year

---
