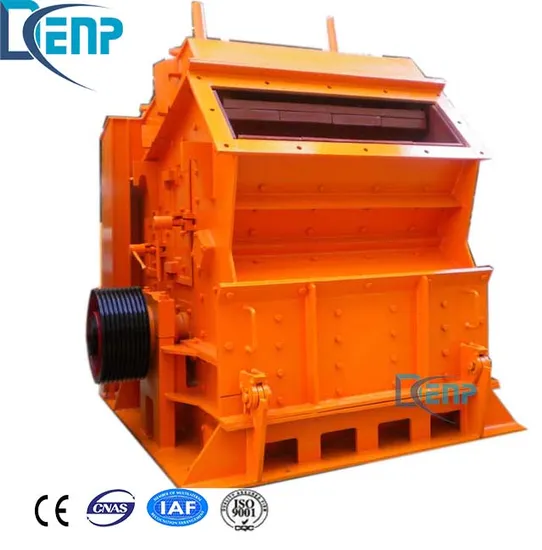

High Quality PF-1315 Denp Impact Crusher

Product Description

Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. Impact crusher is ideal choice for crushing and screening. It features reasonable structure, high productivity, easy operation and maintenance and safe performance. The most outstanding advantage of the impact crusher is that its finished powder is in good, cubic shape and without tensility and cranny.

Features and Benefits:
1. High reduction ratio and crushing efficiency;
2. No-board connection; the blow bar with high chrome (high chromed blow bar).
3. Impact plate with a special shape.
4. Crushed product with cubical shape.
5. Easy maintenance and reliable operation.

Features and values:
1. A range for every type of application
2. Unique hammer attachment system for increased security
3. Easy to operate and maintain
4. Wide range of hammer and liner materials including manganese,
5. martensitic, high chrome and ceramic insert

Working principle:

This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine. Model Former Model (mm) Feed Opening (mm) Max. Feeding Size( mm) Capacity(t/h) Power(kw) Weight(t)

PF-1214VI	φ1280*1400	400*1430	350	95-145	132	15.3
PF-1315VI	φ1320*1500	800*1530	350	120-200	185	18.9
PF-A-1010V	φ1000*1050	400*1080	350	50-90	55	12.8
PF-1210V	φ1280*1050	400*1080	350	70-120	110	14.1
PF-1214V	φ1280*1400	400*1430	350	95-145	132	16.8
PF-1315V	φ1320*1500	800*1530	350	100-180	185	21
PF-1320V	φ1320*2000	800*2030	400	250-320	280	29.7
PF-1420	φ1400*2000	1250*2030	600	250-350	355	40
PF-1620	φ1600*2000	1600*2080	600-800	350-450	560	47.5
Note:The weight excludes that of motor.

---
