ASTM D1265 Liquefied Petroleum (LP) Gases Manual Sample Cylinder

Product Description

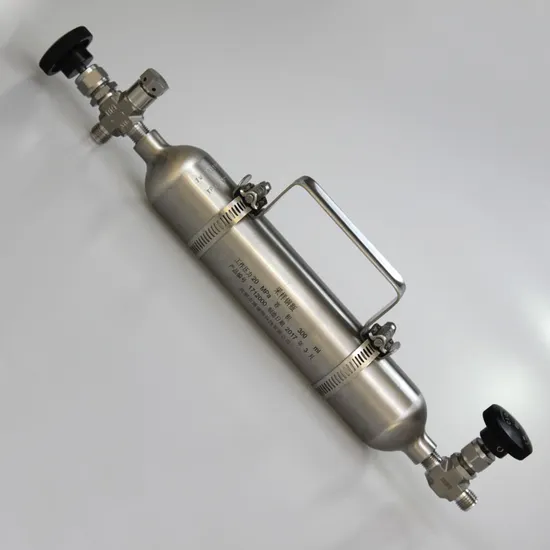

LPG Sample Cylinders
Model BPY-G300
Doubles-Ends LP-Gases Sampling Cylinders
This product is a seamless LPG sample cylinder formed by spinning, conform to standard of SH/T 0233 and ASTM D1265<Standard Practice for Sampling Liquefied Petroleum (LP) Gases, Manual Method>, ISO 4257<Liquefied petroleum gases - Method of sampling>.
Test content contain pressure test, air tightness test, water pressure test and so on.Obtain Chinese patent certificate(NO.:ZL 2011 20094190.X).
The products is used for sampling, carrying and storing toxic and harmful substance such as liquefied petroleum gases(LPG), liquefied natural gas(LNG),hydrothion(H2S), sulfur-containing water,hydrocarbon compound or gas suchas nitrogen(N2),oxygen(O2),carbon dioxide(CO2).

Characteristic:
1.Which are made of seamless tubing and formed by utilizing spinning process ;
2.No weld defect; 316L Stainless Steel; Excellent resistance to corrosion and high temperature;
3.Uniform wall thickness, inner surface after pickling passivation, easy to clean;
4.Obtain the national production license and "Sampling Cylinder"patent certificate;
5.Equipped with safety explosion-proof pressure relief device;
6.More than ten kinds of accessories are available for selection;
7.Double-ended Cylinder Body having female quarter inch threader ends NPT.
8.Rupture disc work on 870psi or 3600psi.
9.Teflon/PTFE Coating can be customized

Parameters:
1.Working Pressure: BPY series 4Mpa(580psi) ; BPY-G series 3000psi and (5000psi)
2.Design Pressure: BPY series 6Mpa(870psi) ; BPY-G series 4500psi and (7500psi)
3.Operation Temperature: -60ºC~+80ºC
4.Material: 316L
5.Suitable Medium: Non-corrosive liquid, gas and gas-liquid mixtures for 316L stainless steel under the specified range of temperature and pressure.
6.Capacity: 50 ml, 100ml, 150 ml, 200ml, 250ml, 300ml, 500ml, 1000ml, 2000ml, 2500ml, 4000ml, 5000ml, 10000ml
Our seamless LPG stainless steel gas cylinder has a wide range of application, mainly serving petrochemical, pharmaceutical, teaching and scientific research, food inspection and other industries.
It can be used in current conventional devices, such as storage tanks, tank cars, tower equipment, production lines, etc.
Sample cylinder standard include:
Sample cylinder body x 1; Valve x 2; Safety Rupture Disc x 1; Carrying handle x 1
Sampling cylinder accessories:
Outage tubes,Lab shelf,Metal soft tube/Flexible hose,Sample injection needle,Pressure gage,Quick coupling,Filter,Coated by PTFE.
In addition, there are pipe fittings, aluminum sampling bag, pressure reducer, low temperature needle valve, cylinder special needle valve, clip nut and other accessories available for customers to choose.
Keywords:
ASTM D1265 LP-Gases Sample Cylinder, Stainless Steel Pressure Vessel, Liquefied Petroleum Gases Corrosion Resistant Metal Sample Containers, Outage Tube LPG High Pressure Sampling Apparatus

Capacity(ml)	Pressure Rating(psig)	Female NPT Size	Dimensions (OD*L)	Weight(Kg)
50	/3000psi /20Mpa /206bar	Cylinder Body 1/4" NPT	32*135mm	0.27kg
100			45*160mm	0.56kg
150			45*190mm	0.68kg
250			45*290mm 51*235mm	1.09kg 0.93kg
300			51*275mm	1.18kg
500			51*425mm 60*320mm	1.8kg 2.04kg
1000			76*385mm	3.6kg
2000			89*545mm	8.05kg
2500			89*670mm	9.1kg
4000			118*585mm	13.22kg
5000
10000

---
