Hmwhdpe HDPE Bucket, Drum, Water Tank, Pallet, Barrel Automatic Making Blow Molding/Moulding Machine

Product Description

PXB110A

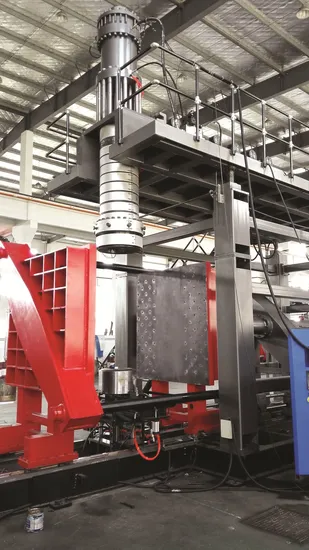

120L-160L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters:

Material		PE,PP,ABS...
Max container capacity	L	160
Output(dry cycle)	pc/hr	300
Machine dimension(L×W×H)	M	6.8×3.3×5.0
Machine weight	T	23
Clamping Unit
Clamping force	kn	880
Mold platen size(W×H)	mm	1100×1400
Platen opening stroke	mm	600-1400
Platen moving stroke	mm	800
Max mold size(W×H)	mm	1000×1600
Mold thickness	mm	610-700
Power
Servo oil pump motor power	KW	22
Servo pump displacement	L/MIN	150
Blow pressure	MPA	1
Air consumption	M3/MIN	1.8
Cooling water pressure	mpa	0.5
Water consumption	L/min	60
Average energy consumption	KW	70-80
Extruder unit
Screw diameter	mm	110
Screw L/D ratio	L/D	25
HDPE Melting capacit for HDPE	kg/hr	180-220
Number of heating zone	zone	6
Screw heating power	kw	30.2
Screw fan power	KW	0.6
Extruder motor power	kw	75
Die head
Number of heating zone for single die head	zone	6
Heating power for single die head	kw	31.2
Max die-pin diameter	mm	520
Accumulator capacity	L	15(20)
(HDPE) Accumulator weight(HDPE)	KG	11(15)

Delivery Time:
- No later than 65 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
