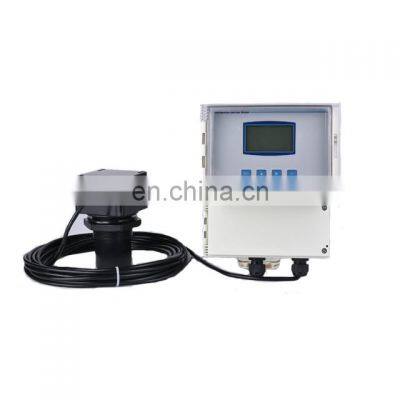

Product DescriptionUTG21-DR Open Channel Flow Meter.UTG21-DR Open channel flow meter used to the measurement of flow within open, partially-filled and free flow channels and the open channel flow meter must be used with the measuring weirs and is mainly used to measure sewage flow within the channel under an open, partially filled and free flow conditions.SpecificationItemsIntegralIntegralMeasuring rangeInstantflow0.1L/s~120000 m3/sLevel0.35m~3.000mMeasuring accuracyFlowTriangular weir 1 ~ 5%/rectangular weir 3 ~ 5% / Parshall flume 2 ~ 3%Level±0.3% FS (standard condition )Cumulative flow4000000000m3Dead band0.35mPressureBelow 3 barometric pressure / 2000m below sea levelMeter displayDisplays instantaneous flow and cumulative flow, liquid level, echo waveforms and historical curvesPower supplyDC18~36V / 100mA or AC85~265V / 3WFlow recorderCan query the cumulative flow of any time during the last 8 yearsOutputAnalog current12bit, with load of less than 500 OhmDigital signalRS485/ModBus agreementSwitching valueSwitching values of 2~4 circuitsTemperatureEnvironment-20℃ ~ +60℃Process-20℃ ~+90℃ (specify in order where a temperature of over +60℃ is a necessity)InterfaceElectricM20×1.5mmPG11 waterproof connectorProcessG2”MaterialsTransmitterAluminum alloyABSProbeABS / ETFE / PTFEWaterproof LevelIP67IP65Explosion protection classEX d[ia]iaⅡBT4*N/ARelated productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.FAQ1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment. 2. MOQ:1set 3. We accept T/T. WesternUnion.PayPal & Secure Payment 4. We offer 18 Month's Warranty on all product 5. Service express company:TNT/DHL/FedEX.
>>
