CNC Vertical CNC Machining Center Vmc1680

Product Description

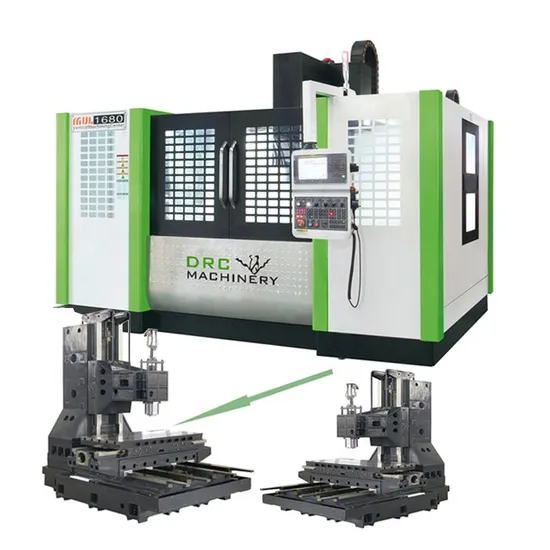

CNC Vertical CNC Machining Center VMC1680
VMC1680 machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace, military, and hardware.
Overall layout of machine tool The overall layout of the machine tool is a frame structure, the base is fixed, the saddle moves in the X direction on the base; the worktable moves in the Y direction on the saddle; the column is installed on the base, and the headstock moves in the Z direction on the column.

The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability
The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy;
The three-axis transmission adopts Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;
The base adopts a casting large water tray structure, which has good waterproof performance;
The high-rigidity Taiwan-made BT50 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;

Model		MVL1680S	Unit
Worktable	Worktable size	1800X800	mm
	Worktable bearing	2000	Kg
	T-slot width	5-22*150	mm
Processing range	X axis travel	1600	mm
	Y axis travel	800	mm
	Z axis travel	750	mm
	Distance from spindle end to worktable	150-900	mm
Spindle	Taper hole model	BT50
	Pull nail specifications	P40T-1-MAS403(45°)
	Spindle speed range	10-6000	rpm
Cnc system		FANUC 0i MF 1 Package
Motor	X axis motor	βis30
	Y axis motor	βis30
	Z axis motor	βis40B
	Spindle motor	βiIP30
Feeding	X axis max. rapid movement	20	m/min
	Y axis max. rapid movement	20	m/min
	Z axis max. rapid movement	15	m/min
Dimensions size		About 4260*3545*3300(max)	mm
Weight		About 15	T

---
