Revolutionize Your Production with Advanced LANYING Metal Wire Mesh Looms!
�� Precision, Efficiency, Durability – Redefine Your Manufacturing Standards
Looking for a game-changing solution to produce high-quality wire mesh products faster and smarter? Our state-of-the-art Metal Wire Mesh Looms are engineered to deliver unmatched performance for industries ranging from mining and construction to filtration and separation.
Why Choose Our Metal Wire Mesh Looms?
✅ Ultra-High Efficiency: Automate your production with cutting-edge weaving technology that boosts output by up to 30%. Minimize downtime and maximize ROI.
✅ Uncompromising Durability: Built with industrial-grade materials, our looms withstand heavy-duty operations and deliver consistent results for years.
✅ Precision Engineering: Achieve flawless mesh patterns with adjustable tension control and real-time monitoring systems. Perfect for intricate designs!
✅ Versatile Applications: Compatible with stainless steel, copper, aluminum, and specialty alloys. Ideal for security fencing, conveyor belts, filters, and more.
✅ Smart Automation: Reduce labor costs with user-friendly interfaces and programmable settings. Focus on innovation, not manual adjustments.
Key Features:
· Robust Frame Design: Ensures stability even at maximum operating speeds.
· Energy-Saving Technology: Lower power consumption without sacrificing performance.
· Customizable Configurations: Tailor mesh size, wire diameter, and weaving patterns to meet your exact needs.
· 24/7 Support: Our expert team provides seamless installation, training, and maintenance.
Industries We Serve:
�� Mining & Quarrying
�� Construction & Infrastructure
�� Food & chemicals
�� Automotive & Aerospace
�� Oil, Gas, & Filtration
Why Partner with Us?
With 20+ years of industry expertise, we’ve empowered businesses worldwide to scale production and dominate their markets. Our commitment to innovation and customer success ensures you stay ahead of the competition.
Act Now! Limited-Time Offer
HEBEI LANYING TECHNOLOGY Co., Ltd is the only professional CNC wire mesh machine factory that produce different series wire mesh machines. We manufacture CNC shuttleless wire mesh weaving machines and CNC metal wire warping machines in China.
We only produce high quality wire mesh machines that could weave from wire diameter 0.012mm~2.1mm (not limit to), fine wire mesh to heavy duty wire mesh cloth fabric.
If you are looking for high quality advanced modern wire mesh machine, please contact me.
Sales: Bonnie Chen
#stainless steel wire mesh machine #brasswiremeshmachine #lanyingmachine #Lanyingwiremeshmachinery
SG100 Series Weaving Machine
SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. The user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. The weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.
Wire diameter
| 0.016-0.3mm
|
Weaving density
| Plain weave square hole 40-400 (or 20-260)mesh/inch; twilled weave upto 600mesh/inch
|
Nominal width (special width on request)
| 1.3m
| 1.6m
| 2m
|
Speed(the actual speed depends on the weaving specs and width)
| 80-120RPM
| 80-100RPM
| 65-80RPM
|
Total power
| 7.5KW
| 8.5KW
| 8.5KW
|
Size (L*W*H) mm
| 2750X3300X1500
| 2750X3600X1500
| 2750X4000X1500
|
Weight
| 4200KG
| 4500KG
| 4600KG
|

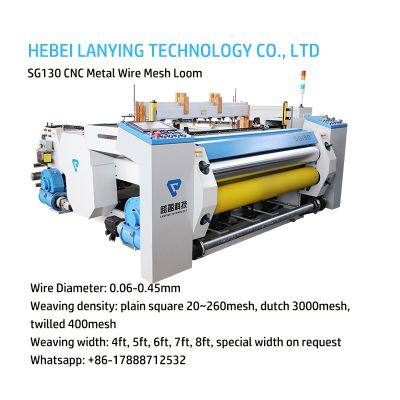

SG130 Series Weaving Machine
SG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
SG130 Standard series is suitable for normal fabric weaving, SG130S is specially designed to weave medium heavy mesh with big wire diameter such as 60*0.19mm, 20*0.4mm, etc, the weaving speed could reach up to 60-100RPM (depends on weaving width and specs).
Wire diameter
| 0.06-0.45mm
|
Weaving density
| Plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch twilled weave upto 600mesh/inch
|
Nominal width (special width on request)
| 1.3m
| 1.6m
| 2m
| 2.5m
|
Speed(the actual speed depends on the weaving specs and width)
| 80-120RPM
| 80-100RPM
| 65-80RPM
| 60-80RPM
|
Total power
| 10.5KW
| 10.5KW
| 12KW
| 12KW
|
Size (L*W*H) mm
| 2750X3300X1500
| 2750X3600X1500
| 2750X4000X1500
| 2750X4500X1500
|
Weight
| 4500KG
| 5500KG
| 6000KG
| 6500KG
|
SG160 Series weaving machine
SG160 Series CNC metal wire mesh weaving machine is designed for heavy wire mesh weaving. The opening is small, and mesh surface is flat, there are single beat-up form and double beat-up form.
Wire diameter
| 0.1-0.7mm
|
Weaving density
| Plain weave square hole 10-100mesh/inch; twilled weave up to 350mesh/inch
|
Nominal width (special width on request)
| 1.3m
| 1.6m
| 2m
| 2.5m
| 3m
|
Speed(the actual speed depends on the weaving specs and width)
| 60-70RPM
| 60-70RPM
| 50-60RPM
| 45-55RPM
| 40-45RPM
|
Total power
| 10.5KW
| 12KW
| 12.5KW
| 13.5KW
| 17KW
|
Size (L*W*H) mm
| 2700X3300X1960
| 3000X3600X1960
| 2800X4000X2150
| 2800X4500X2150
| 2800X4800X2150
|
Weight
| 6300KG
| 7000KG
| 8500KG
| 9500KG
| 12000KG
|
Basic tension
| 40000 N/m
|
SG180 Series Weaving Machine
SG180 Series CNC metal wire mesh weaving machine is suitable for super heavy wire mesh weaving, there are single beat-up and double beat-up type. It can weave wire materials such as stainless steel, iron, bronze, aluminum, alloy, nickel, polyester,etc.
Wire diameter
| 0.2-2.1mm
|
Weaving density
| Plain weave square hole 6-60 or 2-40mesh/inch; twilled weave up to 260mesh/inch
|
Nominal width (special width on request)
| 1.3m
| 1.6m
| 2m
| 2.5m
| 3m
| 4m
|
Speed(the actual speed depends on the weaving specs and width)
| 46-55RPM
| 46-55RPM
| 40-50RPM
| 32-35RPM
| 30-35RPM
| 25-30RPM
|
Total power
| 13KW
| 13.5KW
| 16KW
| 17KW
| 17.5KW
| 18KW
|
Size (L*W*H) mm
| 3500X3860X2160
| 3500X4160X2160
| 3500X4560X2160
| 3500X5600X2160
| 3500X5560X2160
| 3500X5560X2160
|
Weight
| 10000KG
| 13000KG
| 14000KG
| 18000KG
| 19000KG
| 21000KG
|
CNC outside winder, CNC warping machine
LANYING WIRE MESH MACHINE MODEL AND DETAILS:
Product Series
| SG100 Series
| SG130 Series
| SG160 Series
| SG180 Series
|
Standard weaving width
(Special width on request)
| 1300mm
1600mm
2000mm
|
1300mm
1600mm
2000mm
2500mm
3000mm
| 1300mm
1600mm
2000mm
2500mm
3000mm
| 1300mm
1600mm
2000mm
2500mm
3000mm
4000mm
|
Wire diameter range
| 0.016-0.3mm
| 0.06-0.45mm
| 0.1-0.7mm
| 0.2-2.1mm
|
Plain weave square hole (mesh/inch)
| 40-400
| 20-260
| 10-100
| 6-60
|
Twill weave (mesh/inch)
| ≤600
| ≤400
| ≤350
| ≤260
|
Wire material
| Stainless steel, iron, copper, aluminum, platinum, nickel, polyester
| Stainless steel, iron, copper, aluminum,
platinum, alloy, nickel, polyester
| Stainless steel, iron, copper, aluminum,
platinum,alloy, nickel, polyester
| Stainless steel, iron,copper,
aluminum,
alloy, nickel, polyester
|
Speed
(the actual speed depends on the weaving width and specs)
| 100 rpm
(max 120rpm)
| 100 rpm
(max120rpm)
| 50-70 rpm
| 35-50 rpm
|
Basic tension
| 15000 N/m
| 20000 N/m
| 40000 N/m
| 60000 N/m
|
>>
