Pg Vacuum Mandrel Washer Cutting Machine with 0.03mm Precision

Product Description

AUTOMATIC RUBBER WASHER OR GASKET SLEEVE VACUUM CUTTING MACHINE
APPLICATION:
This versatile machine is engineered for the swift cutting of a wide range of materials, including rubber, silicone rubber, plastic, PTFE gaskets, washers, and sleeves. It is exceptionally efficient for processing tubular components, ensuring rapid and precise cuts every time.
FEATURES:
1. Experience unparalleled efficiency by replacing traditional molding methods, significantly reducing both labor pressure and overall costs.
2. Maximize material usage and minimize waste, optimizing your resources like never before.
3. Achieve remarkable precision with accuracy reaching an impressive 0.003mm, setting a new standard in cutting technology.
4. Ensure your products maintain a smooth, clean, and shining finish post-cutting, enhancing both appearance and quality.
Product Description

Model	PG-YAQ-1S	PG-YAQ-2S	PG-YAQ-4S
Shaft Qty	One Shaft	Two Shafts	4 Shafts
Drive Mode	Servo Motor	Servo Motor	Servo Motor
Cutting Efficiency	Max 60 cut/min	Max 120cut/min	Max 240cut/min
Speed	0~3000r/min	0~3000r/min	0~3000r/min
Precision	≤±0.05mm	≤±0.05mm	≤±0.05mm
Cut Diameter Range	Φ10mm~Φ150mm	Φ10mm~Φ120mm	Φ10mm~Φ110mm
Cutting Length	≤200mm	≤200mm	≤150mm
Wall Thickness	≤20mm	≤20mm	≤20mm
Blade Spec	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm
Consumption of Air	50L/min	50L/min	50L/min
Pressure	0.5MPa~0.8MPa	0.5MPa~0.8MPa	0.5MPa~0.8MPa
Vacuum Level	≤-0.035MPa	≤-0.035MPa	≤-0.035MPa
Power Supply	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz
Gross Power	1KW	2KW	3KW
Weight	≈400Kg	≈580Kg	≈800Kg
Dimension(L*W*H)	1350mm×980mm×1400mm	1550mm×980mm×1650mm	1650mm×980mm×17650mm

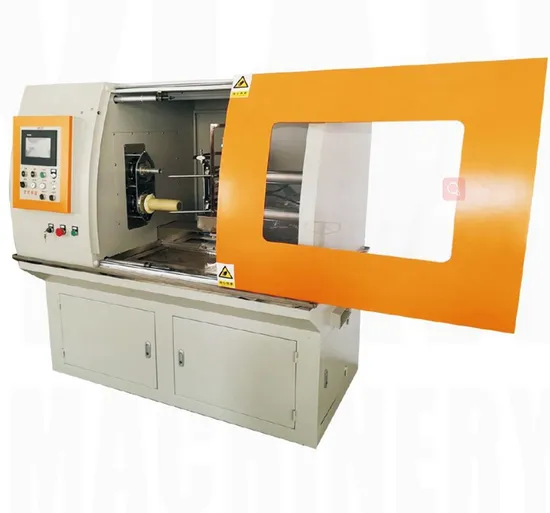

Machine Picture and Workshop Photos
Products After Cutting

---
