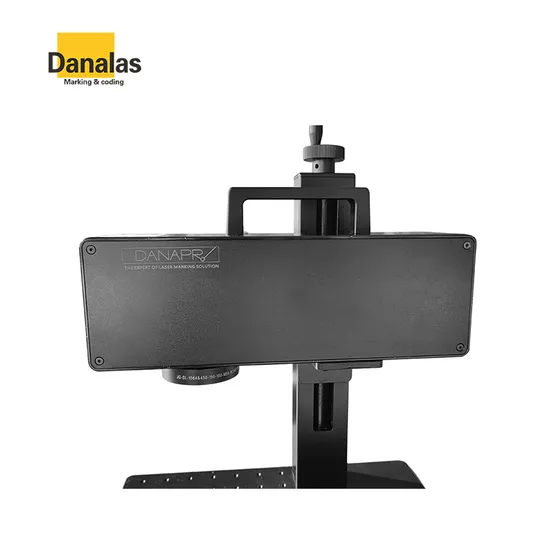

Small Desktop Dual-Light Laser Machine

Product Description

Product Description
The DANA-3020 Desktop Dual-Light Laser Engraver is a small laser engraving machine designed for commercial and personal use. With two laser modes built-in, the DANA-3020 can mark and carve on more than 300 kinds of materials. In addition to marking common product information labels, you can also easily printing pictures. It offers desktop and handheld working modes in one. The device is easy to use with mobile and PC operating software.


Technical Paramenters

Model	DANA-3020
Laser mode	Infrared light	Blue diode light
Laser output power	2W	10W
Laser wavelength	1064nm	455±5nm
Marking speed	≤5000mm/s	≤4000mm/s
Ambient temperature	10ºC-30ºC
Supply voltage	AC110V - AC240V 50HZ/60HZ, OUTPUT: 12.0v-9.0A
Focus type	Fiber laser
Mark depth	0.015-0.2mm
Preview speed	≤10000mm/s
Cooling method	Air cooling -internal fan
Marking range	100*100mm
Graphic format supported	PLT, DXF, BMP, CORELDRAW AUTOCAD Photoshop

Feature
The DANA-3020 desktop dual-light laser machine features an all-aluminum body design, making the entire unit lightweight and portable.
It offers both desktop and handheld two working methods in one, with handheld components that make it easy to mark large items and perform side printing.
Equipped with an industrial-grade galvanometer, the machine can reach a maximum line speed of 5000mm/s, enabling efficient commercial personalized printing for products such as POD gifts and souvenirs. Additionally, it has a repeat button that allows you to process marking text, numbers, bar codes, two-dimensional codes, date and time, logos, and more, in batch with just one click.
The control software is convenient and highly functional. There are four clients to adapt to different user devices, including Android, iOS, Windows, and MacOS. The mobile app is easy to use; you can quickly design and import pictures for printing. The PC programme is powerful and versatile, allowing for fine and complex design work. Additionally, the software is compatible with common design file formats such as PLT, DXF, BMP, as well as CORELDRAW, AUTOCAD, and Photoshop files.
The device features two laser modes, suitable for metal and non-metal materials. The infrared laser has a wavelength of 1064nm; it is suitable for stainless steel, aluminum alloy, gold, silver, copper, plastic, acrylic, and other materials. Meanwhile, the blue diode laser has a wavelength of 450nm; it is ideal for wood, bamboo, leather, acrylic, stone, ceramic, paper, and other materials.
Intelligent focusing and easy positioning allow for precise operation. Simply observe the red light spot and the blue light spot; when the two overlap, the focus is complete.
Laser ultra-fine engraving lines enable precise detailing and clear restoration of intricate designs.
