2000kg Large Hy2000 Hydraulic Low Profile Scissors Lifting/ Lift Table

Product Description

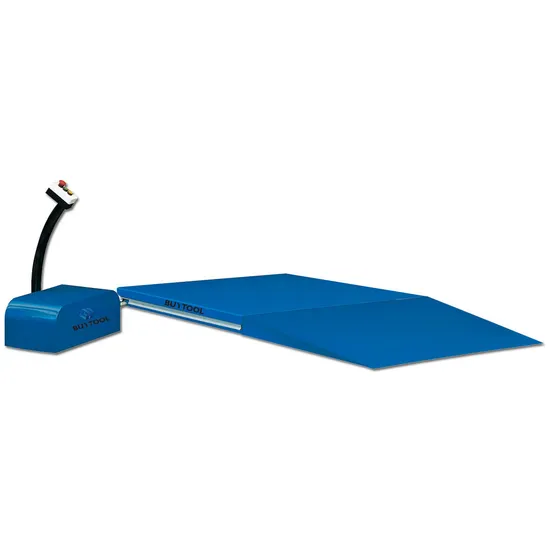

Heavy Duty Lift Table by Wuxi Buytool Industrial Equipment Co., Ltd. Experience the power and reliability of our Heavy Duty Lift Table. With its larger platform and heavy duty design, this lift table is built to handle your toughest lifting tasks with ease.
Equipped with a loading ramp as standard equipment, this lift table allows for easy loading and unloading of heavy items. The oiless bushings on pivot points ensure smooth and efficient operation.
One of the standout features of this lift table is its low closed height, which eliminates the need for a pit installation. Say goodbye to costly and time-consuming pit installations, and enjoy the convenience of a lift table that can be easily set up and used in any location.
Rest assured that safety is a top priority with our lift table. Manufactured to meet all European safety standards, including EN1570: 1999, you can trust that this lift table is designed with your safety in mind.
The lift table comes with a remote power pack with pedestal and controls, protected to IP54. The upper platform is fitted with a safety perimeter to prevent descent on contact with obstructions, ensuring the safety of both the operator and the load.
With a 24V control box featuring UP and DOWN buttons and an emergency stop, you have full control over the lifting and lowering operations. The external power pack is equipped with a relief valve to prevent overloading and a compensated flow valve for controlling lowering speed. The power supply is AC308V/50HZ/3phase, providing reliable and consistent power.
Additional safety features include a hose burst safety valve that stops the lift table from lowering in case of hose breakage, as well as removable lifting eyes that facilitate easy handling and installation of the lift table.
For maintenance purposes, mechanical safety chocks are included, ensuring the safety of maintenance personnel.
Choose the Heavy Duty Lift Table by Wuxi Buytool Industrial Equipment Co., Ltd. for a reliable and efficient lifting solution. Experience the power, safety, and convenience of this exceptional lift table.

Model	Capacity (kg)	Platform Size (mm)	Min.Height (mm)	Max.Height (mm)	Stroke (mm)	Lifting Time (second)	Power pack	Net Weight (kg)
HY1001	1000	1450×1140	85	860	775	25	380V/50HZ,AC 0.75kw	357
HY1002	1000	1600×1140	85	860	775	25	380V/50HZ,AC 0.75kw	364
HY1003	1000	1450 × 800	85	860	775	25	380V/50HZ,AC 0.75kw	326
HY1004	1000	1600 × 800	85	860	775	25	380V/50HZ,AC 0.75kw	332
HY1005	1000	1600 × 1000	85	860	775	25	380V/50HZ,AC 0.75kw	352
HY1501	1500	1600×800	105	870	775	30	380V/50HZ,AC 1.5kw	362
HY1502	1500	1600×1000	105	870	775	30	380V/50HZ,AC 1.5kw	401
HY1503	1500	1600 × 1200	105	870	775	30	380V/50HZ,AC 1.5kw	415
HY2001	2000	1600×1200	105	870	775	35	380V/50HZ,AC 2.2kw	419
HY2002	2000	1600×1000	105	870	775	35	380V/50HZ,AC 2.2kw	405

Product Description Welcome to Wuxi Buytool Industrial Equipment Co., Ltd.! We are dedicated to providing high-quality products that meet the needs of our customers. Here are some frequently asked questions about our products:
FAQ: Q: What about the quality of the products? A: Our products are CE approved, and we ensure their quality through a rigorous inspection process:
Inspect the raw material in accordance with ISO9001 Strict inspection throughout the production process Load limit test during assembly 100% strict inspection of products before shipment If needed, inspection by the buyer Q: How long is the quality guarantee? A: All of our products come with a one-year warranty.
Q: What's the lead time? A: The lead time for our products is as follows:
Normally 30 days If you order more than 5 items mixed in one container, it will be 45 days If you order one item in one container, it will be 20 days

---
