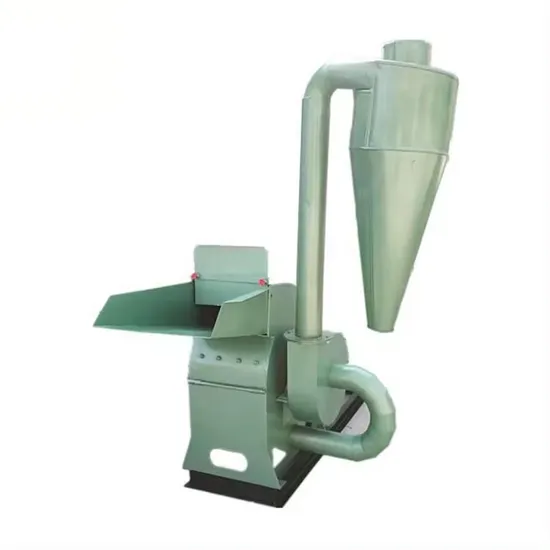

Multifunctional Feed Mill /Hammer Chip Corn Mill /Corn Soybean Grinding / Straw Crusher

Product Description

Product parameters
This machine is suitable for the crushing operation of granular materials such as corn, beans, grains and wheat, and can also be used for the cutting and crushing of lumps such as sweet potatoes and yams, and coarse fibres such as dried camas sticks.

Model	Weight(kg)	Power(kw)	Capacity(kg)	Dimension
30-20	60	1/3phase 4kw	200-500	1300*940*1500
36-20	70	1/3 phase 5.5kw	400-800	1300*940*1590
40-20	80	3 phase 7.5kw	700-1000	1300*940*1670
42-28	120	3 phase 11kw	800-1000	1960*1110*1660
50-32	160	3 phase 15kw	1000-1500	2050*1260*1930
50-40	200	3 phase 18.5-22kw	1000-2000	2100*1760*2170
50-60	650	3 phase 30kw	1000-3000	2500*1990*2460
60-80	900	3 phase 45-55kw	1500-4500

1. Product structure characteristics
The main working part of the 9FQ series crusher is the hammer installed on the rotor, which can crush various granular raw materials. It is a widely used economical crushing equipment at present. It has the characteristics of small size, light weight, easy installation, operation and maintenance, and high production efficiency. High efficiency and many other advantages.
The hammer mill is mainly composed of 6 parts: the upper body, the lower body, the rotor assembly, the screen, the feeding device, and the frame. The body and the rotor assembly together form a crushing chamber. The rotor assembly is the main working part. The crushing is done in the crushing chamber.
2. Working principle
When working, the processed materials enter the crushing chamber from the hopper and are hit and broken by the high-speed rotating working parts. At the same time, the movement direction of the material is changed. Since the high-speed rotating working parts destroy the sedimentation of the material layer, the material will be crushed accordingly. The rotor moves. During this process, the particles are repeatedly subjected to collisions between the working parts and the machine body, as well as collisions and frictions between particles, and are gradually crushed until the geometric diameter is smaller than the diameter of the sieve holes. Under the action of centrifugal force and air flow, the crushed materials It leaks into the crushing chamber through the screen holes and is discharged from the discharge port.
For this machine, the crushing fineness is determined by the size of the sieve holes. Users can choose the screen reasonably according to the particle size requirements of the feed.
Features
1.Compact shape, parts repair and replacement easy
2.Mechanical stability, low energy consumption, crushed, crush phenomenon, not raise he crushed temperature
3.Lower energy consumption, compared with the traditional omnipotent pulverize, it could save 30% power
4.Equipment structure compact, floor space small
5.In crushing box no stitch line, no dead space, easy to unpick and wash, disinfect, change variety expediently, meet with the GMP standard
Application scope
Grain: corn, rice, wheat, oats, barley, sorghum, buck, wheat, millet, green beans, green beans, cassava,Straw, twigs.
Company Profile
Jinan Sensi Industries Co., Ltd (JINJULONG MACHINERY FACTORY) is specialized in manufacturing agricultural processing machinery. Our business scope have been involved Agricultural machinery & Parts, Pipe fittings & Valve etc . Our own factory - JINJULONG MACHINERY was a former state-owned agricultural machinery manufacturing plant, with a long history producing experience, strong technical strength and excellent quality control. Our Disk Mill, Flour Mill,pellet machine, Rice Mill, Oil Expeller and Meat Mincer could be process Corn, Wheat, Rice, Paddy, Soybean, Peanut and Chemical & Pharmaceutical raw materials etc.
Our machines are selling into India, Egypt, Sudan, Kenya, Morocco, Australia and USA etc. . We still keep the quality is the life, Innovation for development, from the wonderful appearance to inner structure, from best package to safety delivery, each action are our best service for the customers.
Our trademarks are "SMECH", "SENCHE" "DRAGONSATR" & "NASTAR", we also could make OEM under customer's requirement.
We also registered an international offshore company "SENSI INDUSTRIES LIMITED" for management some import & export business.
We are willing to build trusty business relationship and friendship with you.
Our service:
1.Warranty: 12 months after selling
2.Certificates: As your requirements
3.Prepare goods ready according to our agreement
4.Quality Management System: ISO 9001:2008
5.Advanced technique, Strong R&D capability
6.Wide range of product types
7.OEM quality, factory price, fast delivery and efficient service
8.Keep stock for emergency orders
FAQ:
Q1: Can I add my logo on the products?
A1: Yes, OEM is available for us.
Q2: Do you have inspection procedures for the products?
A2: 100% self-inspection before packing.
Q3: Can you accept small qty?
A3: Yes, small qty accept & quick delivery.
Q4: Can I have a visit to your company before the order?
A4: Sure, welcome to visit our company.
Here is our company address: No. 112 Jiefang Road, Jinan, Shandong, China .
Q5: Are you trading company or manufacturer ?
A5: We are factory.

Q6: How long is your delivery time?
A6: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q7: What is your terms of payment ?
A7: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
Contact us:
JINAN SENSI INDUSTRIES CO., LTD
NO.112 JIEFANG ROAD, JINAN, CHINA

---
