Product Overview :

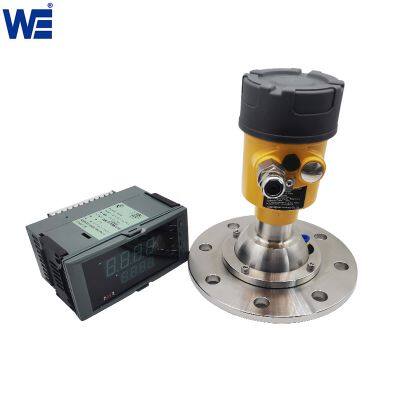

Because of its strong signal coverage and tiny measurement blind region, the non- contact 80GHz radar level sensor can detect more powder and grain in tanks than ever before, which not only improves efficiency but also saves money. The non-contact 80g radar level sensor is intended for usage with high-density solids including minerals, coal, and rocks. As a high-quality 80G radar liquid level sensor, it can measure materials with low dielectric constant, such as aluminum chloride, cement powder, coal powder, etc.
Non-contact 80g radar level sensors advantages:
● The FMCW radar level meter is unaffected by these conditions, unlike conventional level measurement devices like capacitance level meters and ultrasonic level meters, which frequently suffer from constraints like dust or material build-up.
● The 80g FMCW Non-Contact Radar Level Sensor is simple to install and keep up. Without requiring any assistance, it may be put on a variety of containers, including tanks, silos, and bins. It also requires less maintenance, which lowers maintenance expenses.
● An good option for measuring the height of a solid tank is a non-contact 80g radar level sensor. It is a popular option for industries ranging from food processing to mining because of its accuracy, dependability, and capacity for handling difficult situations.
Non-contact 80g radar level sensor technical parameters:
Name
| Non-contact 80GHz Radar Level Sensor
|
Model
| WERD- 92, WERD-92S, WERD-92E
|
Medium
| Powder/solid/dust
|
Antenna Type
| PTFE; Lens(76mm)
|
Measure Range
| 0-150m
|
Mounting
| Universal flange with purging
|
Accuracy
| | Display
| LCD display
|
Beam angle
| 3°
|
Microwave frequency
| 76-81 GHz
|
Output signal *
| 4-20mA +HART / Others
|
Power supply *
| DC 6-24V, AC 220V/50Hz
|
Material
| 304 stainless steel and die-cast aluminum housing
|
Pressure
| -0.1~2MPa
|
Storage temperature
| -40~+120℃
|
Protection class
| IP68
|
Warranty
| About 365 days
|
