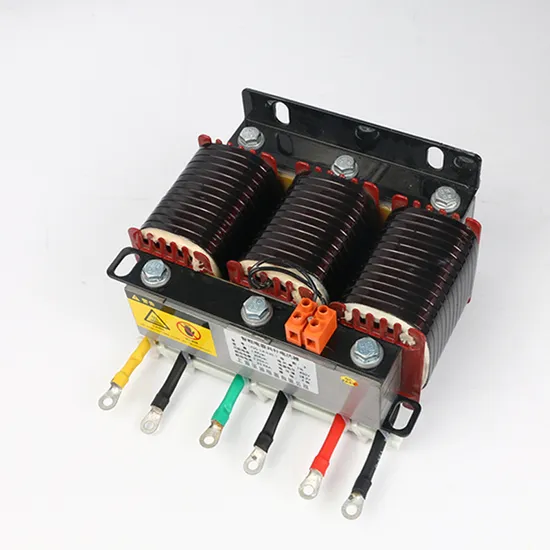

Low Voltage Anti-Harmonic Industrial Power Reactor 400V. 450V. 480V. 525V (accetp customized)

Product Description

Capacitor at the time of the inductive reactive power compensation, often by harmonic current, voltage switchinginrush current and operation process, the influence of the damaged capacitance and power factor is reduced, this need inthe front-end reactor with series capacitor, capacitor to restrain and absorb harmonic, protection,to avoid the harmoniccurrent and voltage impulse voltage current impact, improve power quality, improve system power factor to extend theservice life of the capacitor.
2.Product structure characteristics and connection mode
1.The filter reactor is divided into three phaseand single phase, both of which are core dry type. 2.The iron core is made of high-quality cold-rolled orientedsilicon steel with low loss.The corecolumn is divided into uniform segments with multiple air gaps and the air gap is ring-shaped The oxygen laminated glass cloth plate is used for spacing, and special adhesiveis used to ensurethat the reactance air gap does not change during operation. 3.The coil is made of H-class or C-class enameledflat copper wire, arranged closely and evenly. 4.The coil and iron core of the reactor are assembled into a whole, and theprocess of pre-drying →vacuum prepainting →hot drying and curing is adoptedGrade H impregnated paint makes the reactor coil and iron core firmly together. 5.The clamps and fasteners of the reactor are made of nonmagnetic materials to ensure that thereactor has a high quality factorGood filtering effect; 6.The exposed parts are treated with corrosion prevention, and the leadout terminals are tinned copper tube terminals. 1.Altitude is not more than 2000 meters; 2.Operating environment temperature from-25°ºC to +45°ºC , relative humidity not exceeding 90%;3.There is no harmful gas or inflammable and explosive articles around; 4.The surrounding environment should have good ventilation conditions. lf installed in the cabinet, ventilation equipmentshould be installed. 1.Suitable for 0.4KV,0.45KV,0.48KV,0.525KV,0.66KV,0.69KV,1.14KV; 2.Types of reactance: 1%,4.5%,5.6%, 6%,7%,12%,13%,14%; 3.Voltage withstand grade: 3KV/min, insulation grade:B, F,H, noise ≤50dB, overload capacity≤1.35 times;

---
