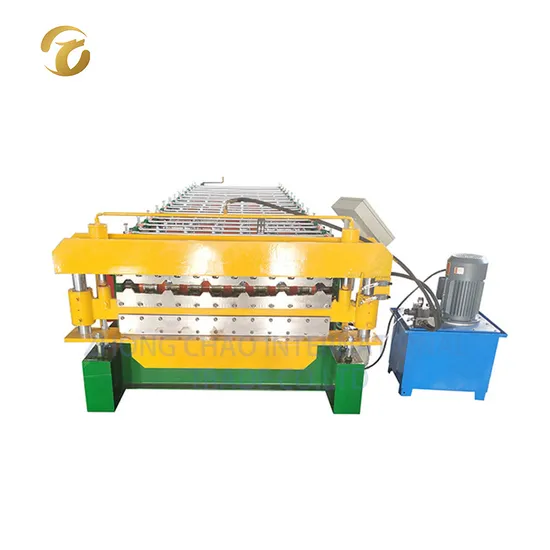

Double Metal Roof Sheet and Wall Panel Roll Forming Machine

Product Description

Product Parameters

Item	Data
Suitable raw material	PPGL,Galvanized coil,Galvalume coil
Raw material width	1200/1220/1250
Roof sheet width	1000mm
Raw material thickness	0.3-0.8mm
Machine motor power	4 KW
Machine appearance size	7500 x 1500 x 1400 mm
Machine weight	4500 Kg
Voltage	380V or 220V or customerrequirement
Machine working speed	15-25 meters/ min
Control system	A PLC control system
Cutting system	A hydraulic cutting system

Product Description
Base on one layer roll forming machine, the double layer machine have additional set rollers and cut blade for another roofing design. So, two sets rollers share with one machine base, motor , hydraulic station, PLC controller and cut frame. When one layer
is working, the other layer can not work. Customer can choose any two of roof design to combine in one double layer machine.
We provide customers services, the trapezoidal roofing sheet has many different shapes, usually different countries have its own popular design , we can customize the
machine as customers' demand. Here are some roof sheet designs we produced before:
Company Profile

Packaging & Shipping

a) How to choose the right machine?
Our products have corresponding pictures and videos for reference, welcome to our factory to visit the test machine.
b) How can I learn more about your products?
You can send an email to our email address. We will provide catalogues and pictures of our products for your reference.
c) Do you only sell standard machines?
We can customize according to your requirements or drawings, you can talk to us if you have any needs.
d) Do you have after-sales support?
We have a professional after-sales team. If necessary, we can send engineers to the customer site to guide the installation and commissioning of the machine.

---
