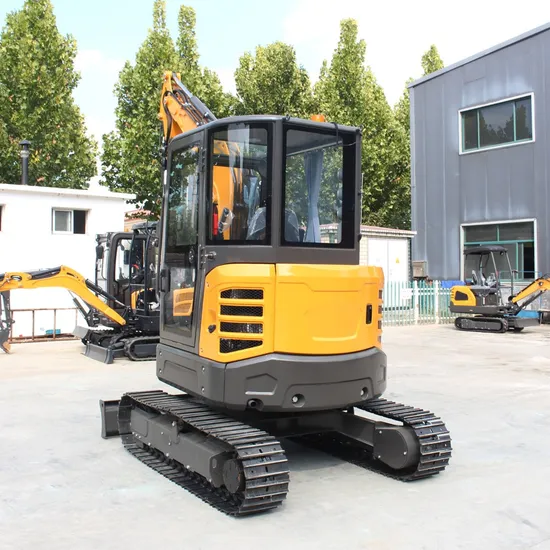

China Factory Digging Machinery 4 Ton Hydraulic Digger Mini Crawler Excavator

Product Description

Product Parameters

Specifications		Dimensions
Traveling Speed(km/h)	4.4/2.4	Overall Width(mm)	1720
Swing Speed(r/min)	0-11	Overall Length(mm)	4915
Max. Bucket Digging Force(kN)	30.4	Overall Height(mm)	2525
Arm Digging Force(kN)	18.2	Mini Ground clearance(mm)	295
Ground Pressure(kPa)	32	Track width(mm)	300
Hydraulic system pressure(Mpa)	22.5	Axle base(Track length on ground)(mm)	1670
Machine Weight(kg)	3810	Length of track(mm)	2154
Boom Length(mm)	2535	Track Gauge(mm)	1420
Arm Length(mm)	1400	Swing radius at tail(mm)	860
Fuel Tank Capacity(L)	42	Swing radius at the front(mm)	2538
Hydraulic Tank capacity(L)	48.5	Height of blade(mm)	350
Engine oil capacity(L)	7	Max. Digging Radius(mm)	5480
Carrier roller(each side)	1	Max. Digging Depth(mm)	3208
Supporting roller(each side)	4	Max. Dumping Height(mm)	3406

Product Description
Available Accessories

Company Profile

FAQ
Q1. Are you a manufacturer?
A: Yes, we are a factory with more than 3 years of manufacturing experience.
Q2. How can we guarantee quality?
A: There will be a pre-production sample check before mass production and a final inspection before shipment.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
Q5. How much is the freight fee?
A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.
Q6. What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.

Q7. Can you customize or support ODM/OEM?
A: Yes, with sufficient quantities, we can customize unique designs and colors for you.
Q8. How do you make our business a long-term and good relationship?
A: We keep good quality and competitive prices to ensure our customers' benefits; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
