Manufacturer High Speed Flute Laminator Machine for Corrugated Paperboard

Product Description

Product Description
Product Description

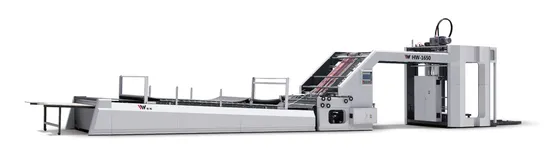

HW-1650 laminating machine belongs to the field of paper production machinery, especially a laminating machine used to paste two pieces of paper together, which is composed of a paper feeding mechanism, a paper laminating mechanism and a paper pressing mechanism, two tables are set on the paper feeding mechanism, a middle positioning mechanism is set on the paper laminating mechanism, the paper laminating mechanism is divided into two paper paths, and a wing spring is set on the two sides of the paper laminating mechanism. The intermediate positioning mechanism is composed of an intermediate positioning guide block and a lifting mechanism. The utility model has the advantages of simple structure and high production efficiency.Workers can operate machines through intelligent Windows.
Detailed Photos

Product Parameters

Model		HW-1650
Max. Sheet Size (W*L)		1650*1650mm
Min. Sheet Size (W*L)		390*360mm
Thickness	Top sheet	150~600gsm
Thickness	Bottom sheet	0.5-12mm(A,B,C,D,E.)
Laminating Accuracy		±1mm
Max. Speed		12000P/h 150m/min
Power		26 kw
Dimension L*W*H		16300x2400x2900mm
Height of Bottom Paper		400mm
Height of Top Paper		1800mm

Production Show


Machine components

Components	Brand	Origin
PLC	Delta	Taiwan
Touch screen	Delta	Taiwan
Servo motor	Delta / Schneider	Taiwan
Frequency converter	Delta	Taiwan
Air pump	Becker	German
Motor	Simens	German
Air switch	Schneider	France
Button / Switch	MOELLER	German
Photoelectric sensor	Omron	Japan
Contactor	Schneider	German
Relay	Omron	Japan
Encoder	Autonics	Korea
Reducer	Liming	Taiwan
High frequency valve	SMC
Bearing	NSK	Japan
Timing belt	GATES	USA
Conveyor belt	Nitta	Japan

Machine Characteristics

Top sheet feeding section

Automatic leading-edge suction feeder ensures stable running at high speed;
No extra adjustment for different sheet sizes, paper weight ranges from 120 gsm to 600 gsm., easy to operate.Sufficient operation space due to no suction feeder above paper piles; Ideal low E-type piling plate and high speed lifting device ensures quick paper piling to save time and increase efficiency.
Pre-loading device by rail equipped as standard.

Bottom sheet feeding section

The lower suction belts driven by Yaskawa servo motor to assure accurate sheet feeding.n
Pneumatic bar can press the front edge of boards for smooth feeding when the boards are curved

Transmission System

Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency.

Gluing section

High precise coating stainless steel roller mechanism assures even adhesive applied.
Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
Three sensors to control the glue volume level automatically.
Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

Control Panel

---
