30t/D Fully Continuous Tyre Pyrolysis Plant

Product Description

Performance Feature
Internal screw rotatory pyrolysis. No coking.
Hot melt processing in advance, process generated HCL specially, more environmental protection.
Adopt multilevel cooling design, to get more fuel oil.
Hot air heat, cooperated with low temperature pyrolysis catalyst, extend working life of plant.
Enclosed production all the way, no leakage and no dust loss, environmental protection.
Exhaust gas multistage processed, gas discharge reach European Standard level.

Technological Process

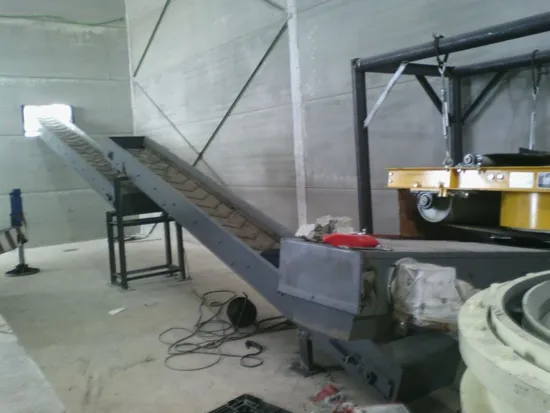

Waste plastic and medical waste sent into fuel preheater by conveyor to melt. Process generated HCL specially.
Melted fuel continuously sent into reactor, and finish pyrolysis under low pressured catalyst.
After generated gas during pyrolysis separates in gas-liquid separator, liquify in condenser and get fuel oil. After fixed bed second catalyst and dewaxing , can get the fuel oil with high quality.
Carbon residue after pyrolysis output continuously by cooling conveyor, and made to be carbon rod as fuel.
Flammable gas goes into exhaust gas treatment tank to desulfur, then extracted by vacuum pump and enter into water sealed tank, sent to hot air stove to burn.

Main Performance Parameter

Item	Type	XFLJ--SL-15	XFLJ--SL-30
Capacity/24h		15T	30T
Working temp.		≤650°
Fuel		Fuel oil, natural gas, liquified gas
Heating way		Hot air circulation heating
Fuel request		Waste plastic, medical waste and household waste
Working pressure		Normal pressure
Inflaming retarding way		Nitrogen purging
Consumption		200 kg	200 kg
Size		14000 × 2400 × 4000(mm)	28000 × 2400 × 4000(mm)×2
Total power		90 kw	170 kw
Power consumption		80 kw/h	150 kw/h
Floor space		40000 mm × 4000 mm	40000 mm × 9000 mm
Highest point of installation		7000 mm	7000 mm

Remark: This parameter is just for reference. Size change caused by design improvement will not inform customers specially. Please refer to documents enclosed with products.
Product Recovery Rate
Fuel oil: 60-85%
Carbon residue: 10-30%
Syn gas: 5-10%

---
