| US$54.00-58.00 | 50 Sets (MOQ) |

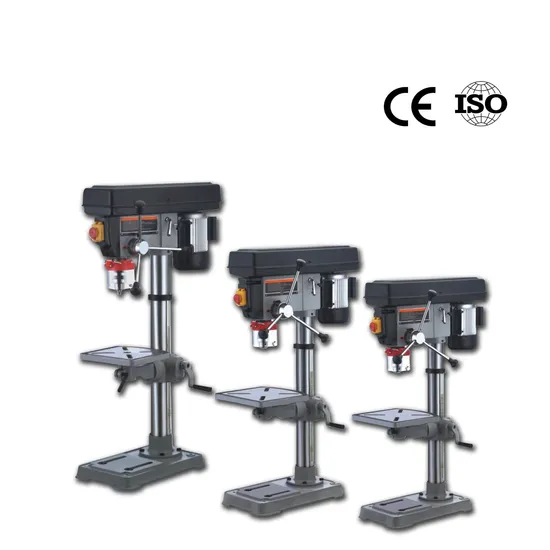

| Model | DP33016B | DP38016B | DP43016B |
| Drill capacity | 16mm | 20mm | 25mm |
| Chuck capacity | 16mm | 16mm | 16mm |
| Swing | 13" (330mm) | 15" (380mm) | 17" (430mm) |
| Spindle taper | MT2 | MT2 | MT2 |
| Speed range (50Hz) | 12 (180-2740rpm) | 12 (180-2740rpm) | 16 (160-3000rpm) |
| Speed range (60Hz) | 12 (250-3100rpm) | 12 (250-3100rpm) | 16 (200-3630rpm) |
| Spindle travel | 80mm | 80mm | 80mm |
| Column diameter | 73mm | 73mm | 80mm |
| Rack & pinion | Yes | Yes | Yes |
| Base size | 450x270mm | 450x270mm | 505x345mm |
| Table size | 254x254mm | 305x305mm | 356x356mm |
| Motor | 600W | 600W | 1100W |
| Overall height | 1050mm | 1050mm | 1050mm |
| N.W./G.W. | 52/56kg | 58/63kg | 81/86kg |
| Packing size | 895x490x290mm | 895x490x290mm | 970x540x330mm |
| Quantity for 20GP | 224pcs | 224pcs | 154pcs |
