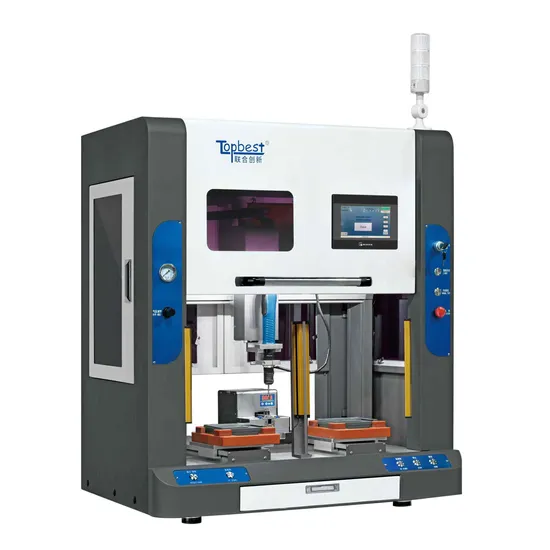

Robotic Electric Torque Control Automatic Screwdrivers

Product Description

Robotic electric torque control automatic screwdrivers
Specifiation

Model	TBS-SM-6331C
Machine Size	900*650*1100MM,Packing size:1000*750*1270MM
Weight&Packing	15.KG,Plywood Packing,total 190KG
Power supply	AC110V/220V, 50HZ/60HZ
Air pressure requirement	0.4 to 0.8 Mpa
Move speed	X,Y 600-800MM/S,Z 400MM/S
Control System	Touch panel
Driving mode	Closed-loop motor + synchronous belt
Alarm system	Screw stripped and loose alarm
Screwdriver Brand	KILEWS/SD
Feeder Brand	TBS
Torque Range	According to product
Feeder capacity	According to screw size
Feeder mode	Pick and Place
Repeated accuracy	±0.02mm
Fastening efficiency	40-60 PCS/Min
Max. load	15KG
Work environment	Temp 0~40ºC,Humidity 20%~95%

Functions&Advantages
Functions.
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2.With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
3. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
5. High degree of automation, easy operation which the staff can master and debug quickly.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management.
8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Advantages.
Reduce cost:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency
High efficiency:the number of electric screwdriver of the Z axis is customizable according to customers' requirements. Several electric screwdrivers can work at the same time.
More relax: single equipment for single worker, Just finished loading,Reduce the labor intensity of workers.
Reliability:Automatic alarm system, working >20 hours
Good image:Iintelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology
6.Customization:Robot can be customized based on customers' requirements on products assembly.
Certificate Display
Customer Visit
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Nearly every day from customers and abroad come to our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

---
