Product Description
Product Description

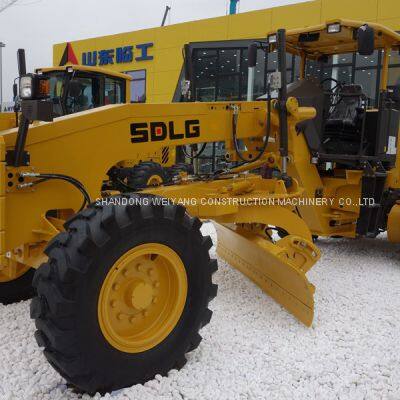

G9138 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.
| Item | Specifications |
Operation mass of complete machine
| 12100kg
|
Dimensions(LXHXH)
| 8120X2410X3200MM
|
Max.angle of inclination of front wheel
| ±18°
|
Max.swing angle of front wheel
| ±16°
|
Max.steering angle of front wheel
| ±50°
|
Steering angle of frame articulation
| ±23°
|
Cutter diameter
| 1375mm
|
Cutter specifications(LXHXT)
| 3048X565X16mm
|
Rotation angle of balde
| 360°
|
Ground clearance of axles(F/R)
| 590/400mm
|
Cutting depth of blade
| 575mm
|
Sliding range of balde
| 500mm
|
Max.traction(f=0.9)
| 75.4kn
|
Engine power
| 105kw
|
Max.speed(forwader/backwarder)
| 34/24km/h
|
>>
