Dry Gunite Jet Cement Mortar Spraying Machine Used for Mining Shotcrete Machine

Product Description

Product Description

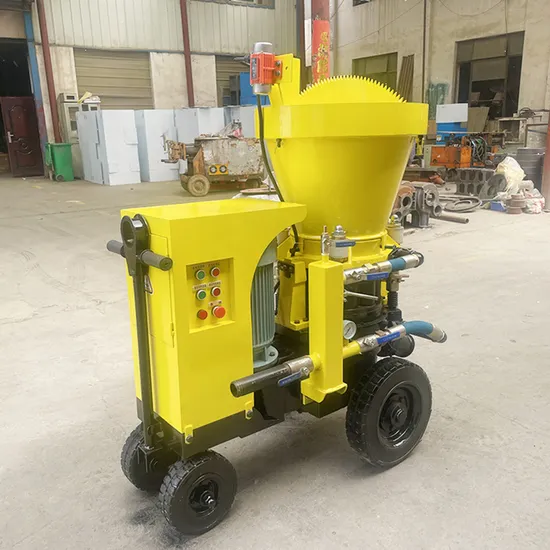

SPZ-3R Refractory gunning shoctete machine
Our SPZ-3R Refractory shotcrete machine is specifically designed for refractory dry-mix shotcrete applications. Compared with normal concrete spraying machine, there is an additional bag cutter added for easy operation. Our refractory gunning machine is specially designed for spraying refractory materials, castable in refractory repair installing project such as Aluminum Furnace Linings, Industrial Furnace Repair, Heat Treating Furnaces, Reheat Furnaces, Rotary Kiln Linings, Tunnel and Shuttle KiIns, Dryer and Combustion Chambers, Refractory Boiler Settings, Incinerator Rebuilds, Stack and Duct Linings, Ladle and Crucible Linings.
The working principle of the SPZ series concrete shotcrete machine:
The SPZ series concrete shotcrete machine is mainly composed by the driving device, rotorassembly , airway system,injection system,electrical control box. Mixed materials are discharged from the mixer into the shotcrete vibrating screen mesh feeding hopper,injected into the rotor body through the feeder then to the outlet,compressed air is introduced from the air chamber to blow the material into the discharge elbow,at same time another compressed air is introduced by the cyclone,the material is blown away in a multi-headed wind spiral state accelerate, and output rotation, float,to the material pipe,then,add some water or liquid accelerator and spray it out.
Technical Parameter

Model	SPZ-3R
Spray Capacity	3m³/h
Horizontal	200m
Vertical	20m
Water Cement Ratio	<0.4
Max. Aggregate Size	Ø20mm
Operating Air Pressure	0.4-0.6mpa
Air Consumption	3-4m³/min
Power	5.5kw
Size	1040*550*950mm
Weight	260kg

Product Features
1.Through-rotor,Smooth discharge,efficiency.2.Four-point elastic Compensation Compression,good sealing effect,less dust,Wearing parts reinforce.3.Low-pressure high-speed vortex air transport,overcome sticking in material conveying,plugging and pulse distraction.The material flow is uniform, continuous and stable.4.New nozzle,outlet elbow device,improve spray effect,less rebound,high quality spray layer.5.The shotcrete chassis can be assembled into a tire type,skid type and rail wheel type of various gauges

Product Details
Application
Factory Display
Company Profile

Zhengzhou Sinogrout Machinery Co., Ltd. Located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on shotcrete machine,grout pump, concrete pump, grout mixer, slurry pump,hydroseeder,mortar pump and so on.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our products are widely recognized and trusted by domestic and foreign Customers; And have been exported to more than 50 countries and regions in the world, including: Germany, Singapore, USA, Russia, Vietnam, Myanmar, Malaysia, South Africa, Brazil, India and other countries, and win the good reputation of the clients all over world with reliable service. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
FAQ

1. Q: What is output of your shotcrete machine? Do you have machine to spray dry concrete and wet concrete?
A: Yes, we have different models of shotcrete machine, the output is from 3m3/h to 7m3/h. Our shotcrete machine structure is similar with Aliva concrete spraying machine.
2. Q: Could you supply shotcrete machine with diesel engine, air motor?
A: Yes, our factory is professional on shotcrete production. We could make diesel or air motor concrete spraying machine.
3. Q: We want to have one person to control machine and spraying concrete, could you help us?
A: Yes, we could add remote control and adding a frequency modulator , then only one person can operate the machine.
4. Q: What is your warranty terms?
A: It is one year except wearing parts. We will delivery some wearing parts together with machine.
5. Q: What is the lead time?
A: Since it is our hot model, usually we have some in stock. If not in stock, it will take around 3 days for production.
6. Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal.

---
