Ce Qualified Heavy Duty Hose Crimping Machine up to 6 Inch

Product Description

Technical Datas Of KM-91F Heavy Hydraulic Pipe Crimping Machine

Model NO.	KM-91F
Crimper Rage	3" - 6" IV
Standard Voltage&Motor	380V/5.5kW
Opening Without Dies	φ270mm
Opening	above 38mm
Open Time	within 4S
Close Time	within 22s
Capacity Of Oil Pump	35L/min
Systematic Pressure	30Mpa
No.of standard die sets	4 sets
Volume Of Oil Tank	180L
Volume (L*W*H)	1420*900*1000(mm)

Advantages Of KM-91F Heavy Hydraulic Hose Crimping Machine
1).Classical model with stable performance;
2).Designed with low gravity center for easy operation;
3).Variable-speed hydraulic system for quick crimping and energy efficiency;
4).Die sets to be changed in axis position,suitable for larege elbow crimping.
Applications Of Heavy Hydraulic Hose Crimping Machine KM-91F
1).Suitable for high precision pressing for low and high pressure hose diameter, starting from 3" to 6" internal hose pipe.
2).For oil pipeline, oil engineering maintaince.
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:

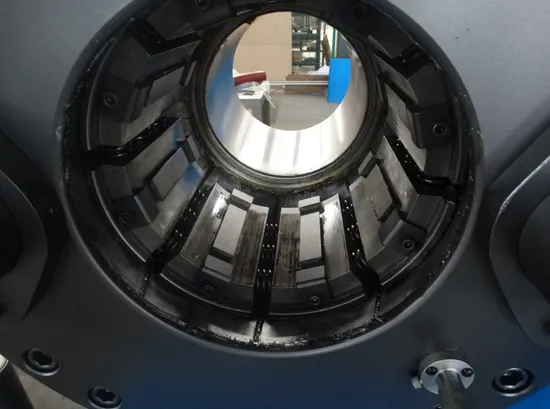

(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
