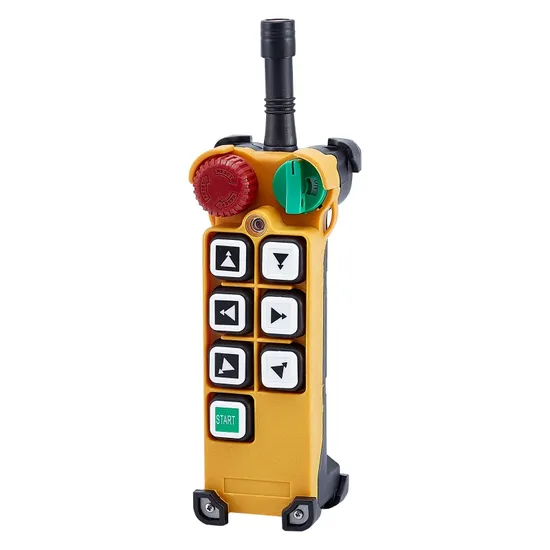

Telecontrol Uting A24 F24-6D 6 Double Speed Wireless Industrial Crane Radio Remote Control

Product Description

Telecontrol Uting F24-6D 6 Double Speed Wireless Industrial Crane Radio Remote Control
Product Specifications : 12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
24-48V UHF : The Receiver power supply 24-48V AC DC . Frequency UHF 425~446MHz . Arrow buttons
100-440V UHF : The Receiver power supply 100-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons F24-6D Function Characteristic : 1.Have 7 function keys (6 double speed buttons + 1 start button ).
2. Control contact is up to 12.
3. With mushroom head rotation scram button
4. Safety switch key is to prevent from unauthorized user
5. With battery voltage warning device, the power supply is cut off during low power.
6. Program the button function by computer software.( The program software /data line need to buy extra )
7. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
Start button can be program to be start, normal, toggle function etc. F24-6D Standard Configuration: 1 pieces transmitters (with hanging belt)
1 piece receiver with 1.6M cable connector
1 pieces dust bag
1 piece english manual

F24-6D Transmitter Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			UHF: 425-446 MHz
Transmitter power			≤10dBm
Transmitter power supply			2 AA alkaline batteries (not included)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Control distance			up to 100 meters (it is available to customized long distance up to 200m)
Size			156x61x51mm
Weight			255g (without battery)
F24-6D Receiver Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			UHF: 425-446 MHz
Receiver sensitivity			-110dBm
Receiver power supply			48/220/380V (optional)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Cable length			1.65m (Other length can be customized)
Output contactor capacity			8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Size			210x162x107mm
Weight			1220g

---
