Ce Certificated Planetary Mixer for Castable Refractory Industry

Product Description

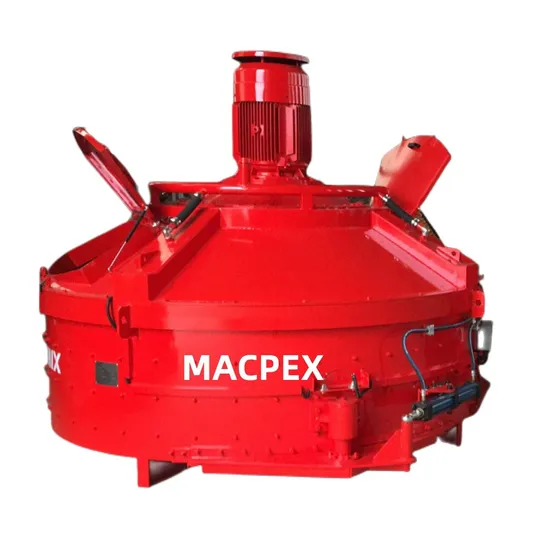

Macpex counter-current planetary mixer can mix all kinds of materials like high performence concrete, refractory materials,ceramics, glass and others.The rotated direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different.The circulation movement and convective movement make the materisl severely mixing and achieve the uniform distribution in microcosm.
High mixing efficiency, low energy consumption.
Compared with traditional planetary mixer, the mixing time of can be reduced 15 to 20%.The no-load current and load current with same material can be 15-20 lower.
Humaniztion design, High saftey.
Easy maintenance
Automatic greasing pump can prolong service life of gearbox and reduce the roution maintenance.Large maintenance gate and inside space is convenient for maintenance and spare parts replacement.
Patameter:

Item	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000	MPC
Filling volume	75	150	225	375	500	750	1125	1500	1875	2250	3000	3750	4500	L
Compacted yield	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000	L
Mixing power	4	5.5	7.5	11	15	18.5	30	37	45	55	75	90	110	Kw
Mixing balde	1*2	1*2	1*2	1*2	1*2	1*3	1*3	2*3	2*3	2*3	3*3	3*3	3*3	Pcs
Weight	500	850	1300	1500	2200	2500	3500	5500	6000	6500	8500	10500	11000	Kg

The diagram show the perfect mixing action of planetary mixer from 6 to 60 seconds after materials added. Note that the floor is
complaetely swept by the mixing star's every 4 revolution(6 second) and each zone is covered at regular intervals in time.
Application
Case
Delivery:

---
