Port Container Lifting 45 Ton Reach Stacker Price Tanzania Mexico Peru Argentina Oman Kenya UAE

Product Description

Port Container Lifting 45 Ton Reach Stacker Price Tanzania Mexico Peru Argentina Oman Kenya UAE
Product Description

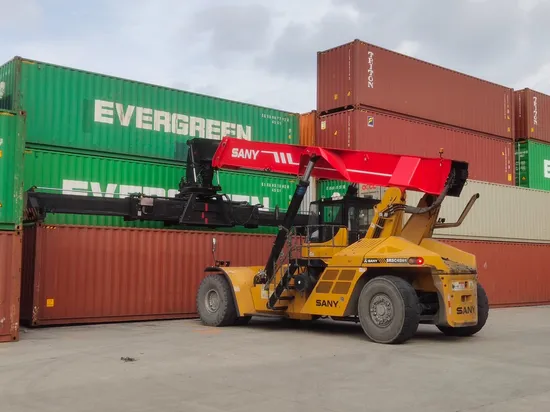

SRSC45H1 Reach Stacker
Reach stacker SRSC45H1 is mainly used in ports, wharfs and storage yards to handle, transfer and stack various containers and
other materials. With many product series such as heavy, overweight hurdling, light, empty container and off-road reach stackers,
reach stacker SRSC45H1 can accommodate various industries, bringing you the maximum economic benefit.
Safe and Reliable
Dynamic Anti-rollover Protection
Uses intelligent control technology to detect equipment's real-time working parameters and automatically adjust the operating
status under dangerous conditions to prevent rollover, keeping you safe on the job.
Anti-collision Technology
By using intelligent control to regulate the positions of spreaders and booms, the reach stacker can effectively prevent collision
among the spreader, frame and boom. This technology helps eliminate accidents by faulty operation.
Automatic Fire Extinguishing
The pipeline network has an automatic fire extinguisher with strong spray. It is capable of acting as a fire alarm, anti-flaming
and fire extinguishing.


Specification

Item		Parameters	Unit
Configuration	Engine model
	Rated power	265/2100	kW/rpm
	Rated speed	1780/1260	Nm/rpm
	Emission standard	Tier III
	Tire	18.00-25 40PR
Spreader	Model	SDJ450F
	Side shift range	±800	mm
	Rotation angle	+105/-195	°
	Self weight	7.8	t
	Application	ISO20'/40'/45' Containers
Boom	Max.lifting height	15100	mm
	Boom tilt angle	0-60	°
Performance	Max.lifting speed (non-load/load)	420/250	mm/s
	Max.lowering speed (non-load/load)	360/300	mm/s
	Max.travel speed (non-load/load)	25/21	km/h
	Gradeability (non-load/load)	39/32	%
	Hydraulic system work pressure	260	bar
	Overall weight	72	t
	Max.load	45	t
	Stacking height	5(9'6"/8'6")
	Dimension(LxWxH)	11340*(6053-12185)*4770	mm
	Wheel base	6000	mm
	Min.ground clearance	350	mm
	Front wheel width	3033	mm
	Rear wheel width	2790	mm
	Min.turning radius	8000	mm
	20"container aisle width	11300	mm
	40"container aisle width	13600	mm
