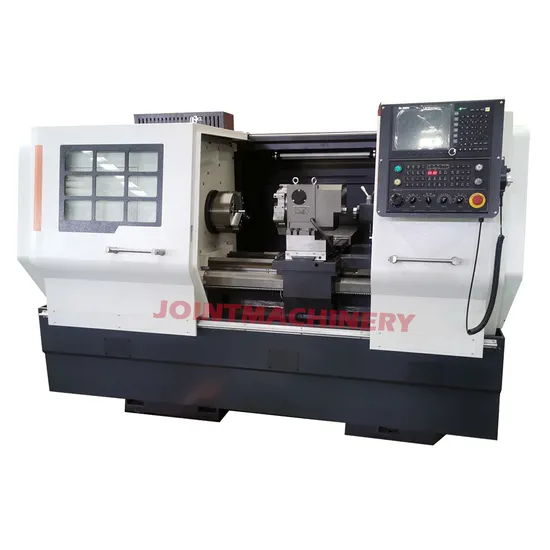

Ck6140 Flat Bed CNC Lathe Machine with Manual Tailstock for Hot Sale

Product Description

CNC lathe machine is upgraded version of normal lathe machine in the market. Compared with manual lathe machine, it has characteristics of convenient operation, stable processing quality, high finishing of processed work-piece, full protection, cutting fluid circulation and good environmental performance. This type CNC lathe is suitable for processing the inner and outer surfaces of shaft parts, thread, arc, cone and revolving body.

	Spindle High speed, maintenance free independent spindle
Bed Frame Integral casting for bed and foot
	Bed Saddle/Slide Widen, thickening, integral casting
Tailstock Lengthened and integrated tailstock

Flat Bed CNC Lathe CK6140

Item	Unit	CK6140
Max swing diameter over bed	mm	410
Center distance	mm	750/1000
Max turning diameter - Disk	mm	400
Max turning diameter - Shaft	mm	200
Max turning length (chuck ro center)	mm	600/850
Max swing over slide	mm	200
Spindle nose type	type	A2-6
Spindle through hole diameter	mm	Φ66
Range of spindle speed	rpm/min	100-3000
Rated power of main motor	kw	5.5 (option: 7.5/11)
Chuck specifications		Manual Φ200 (Φ55), option: hydraulic chuck
Z axis guide rail span	mm	340
X axis guide rail span	mm	200
Z axis travel	mm	620/870
X axis travel	mm	220
X/Z rapid speed	m/min	6/8
X/Z linear guide rail	mm	/
Tool turret type	type	4 station, option:6/8 station
Tool specifications	mm	20*20
Tailstock type	type	Manual, option: hydraulic
Tailstock quill diameter	mm	Φ60
Tailstock quill stock	mm	120
Tailstock quill taper	type	MT-4#
Machining accuracy		IT6
Roughness		Ra≤1.6
Dimensions (L*W*H)	mm	2000/2280*1360*1720
Net weight	T	1.7/1.8

Standard Configuration:
Optional Configuration:
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
