BK5030 CNC slotting machine

Product Details

Product Description

Product Description

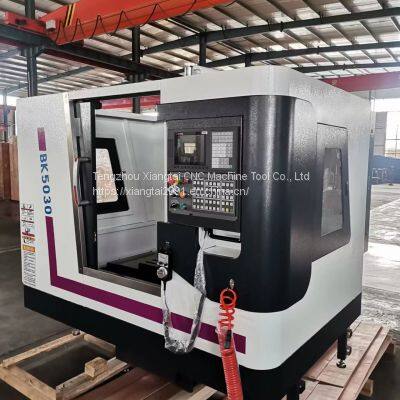

BK5030 CNC slotting machine
Brief introduction and application of the product
BK5030 CNC slotting machine is a new product designed and developed by our company. This machine tool has the function of slotting plane, forming surface and keyway. It is a cutting machine tool that realizes slotting through digital control. This machine tool adopts famous CNC system at home and abroad to realize full screen editing of Chinese prompts. The main drive adopts a crank rocker mechanism. The servo motor realizes large torque transmission through deceleration. The X and Y direction feed are servo controlled to achieve stepless speed regulation. The X direction ball screw is directly connected with the motor, and the Y direction ball screw is transmitted with the motor through synchronous belt.
The CNC indexing head or CNC rotary table can be configured according to the user's needs. The machine tool is powerful and can process keyways at different angles and directions.
The machine tool has high power, good rigidity, large precision reserves, high cost performance, long service life, and can be widely used in machine tools and automobile manufacturing, various mechanical and electrical, aerospace and other industries. It is an ideal equipment for processing keyways of various materials.
Main structural features
1. The slotting machine is controlled by KND1000MF numerical control system. Equipped with external handwheel.
2. The transmission mode is synchronous belt transmission, with low noise and high transmission power.
3. The main slotting motor is a servo motor.
4. Y-axis lead screw nut type adopts double nut preloading.
5. Perpendicularity between Z direction and Y axis ≤ 0.02mm
6. Full protection.
Main technical parameters of BK5030 CNC slotting machine

1	Maintechnical parameters	Company	Parameter overview	remarks
2	Maximum slotting length of ram	mm	300
3	Adjustment stroke of ram	mm	75
4	Movement times of ram	n/min	30--150
5	Table size	mm	550*405
6	Worktable stroke (X, Y)	mm	250*300
7	Distance from cutter head support hole axis to column forearm	mm	505
8	Distance from end surface of cutter head support hole to workbench	mm	540/690
9	X-direction motor torque	（N.M）	6
10	Y-direction motor torque	(N.M)	6
11	Fast moving	X(m/min)	5
12		Y(m/min)	5
13	Ball screw (X)		FFZD3205-3/P4
14	Ball screw (Y)		FFZD3205-3/P4
15	Main motor power	KW	3.7	servo
16	Weight	KG	2800
17	Packaging size	M	2.3*2.3*2.25

---
