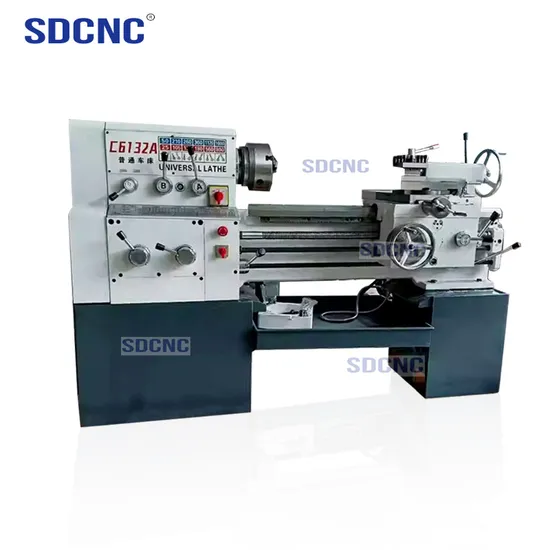

Lathe Machine C6132A Torno Metal Cutting Manual Lathe

Product Description

Product Parameters
Lathe Machine Feature:1. High-strength cast iron
2, the rail is high-frequency quenching, inlaid with high-quality wear-resistant pieces.
3, automatic centralized lubrication
4, the spindle box gear precision grinding, low noise.
5, more types of threads
6, electrical safety performance is good, high reliability.
7, with electromagnetic brake, bed color for a variety of options.Random attachments:1·3-jaw chuck
2·Exchange gear
3· Mohs 3 stays top
4·Mohs 5/3 reducer sleeve
5·Oil gun
6·Baffle plate
7·bed foot
8·Toolbox and tools
9·oil panOptional accessories:1· 4-jaw chuck + tray
2·Flower plate
3. Center frame
4. With the knife holder
5. Top activities
6. Drill chuck + drill clamp
7. Screw guard
8. Chuck cover
9. Digital display
10. Taper model
11. Cooling system
12. polished rod safety joint
13. Scheduled institutions
14. Two-axis digital display
15.·Quick change tool holder

item		value
Condition		New
Model		C6132	C6136	C6140
Center height		165	190	202
Max. swing over bed (mm)		330mm	370mm	404mm
Max. swing over carriage		180mm	200mm	240mm
Max. length of work piece		750mm/1000/1500mm
Width of bed		312mm
Section of turning tool		20×20
Turret rotation		±45°
Spindle	Spindle speed	20- 1600r.p.m(30-2000r.p.m) 12kinds
	Hole through spindle	∮46mm
	Spindle taper	MT6
Feed	X axis feed	0.04-2.16mm/r 138kinds
	Z axis feed	0.02-1.08mm/r 138kinds
	Range of metric threads	0.45-20 mm/r 30 kinds
	Range of inch threads	80-1 n/1" 35kinds
	Range of module threads	0.25-10mm 25kinds
	Range of diametral pitc threads	160-3.5dp 30kinds
Tailstock	Max. tailstock spindle travel	130mm
	Tailstock spindle diameter	∮60mm
	Taper of tailstock spindle center hole	MT4
Main motor		4.5KW
Packing dimensions	Overall dimensions for 750mm	2000×1000×1350
	Overall dimensions for 1000mm	2250×1000×1400
	Overall dimensions for 1500mm	2650×1000×1450
Weight	Overall dimensions for 750mm	1400kg	1500kg	1700kg
	Overall dimensions for 1000mm	1500kg	1600kg	1800kg
	Overall dimensions for 1500mm	1700kg	1750kg	1950kg
Warranty		1 Year
		Online support, Video technical support Video technical support, Spare parts
Key Selling Points		Easy to Operate
Applicable Industries		Machinery Repair Shops, Construction works
Machinery Test Report		Not Available
Video outgoing-inspection		Provided
Warranty of core components		1 Year
Core Components		Gearbox

---
